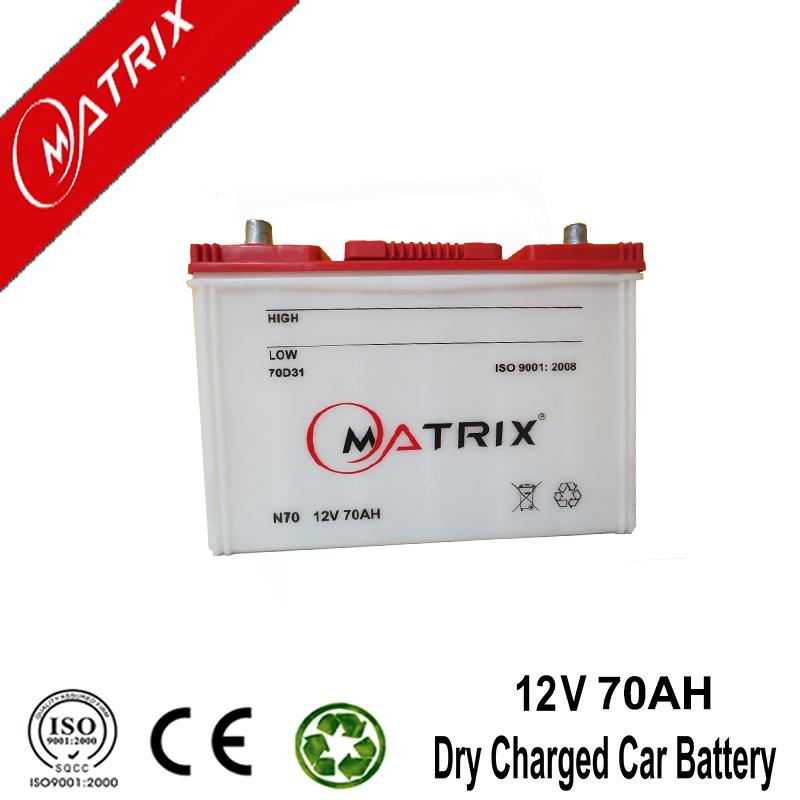

Auto dry charged battery / 12v 70AH Lead acid batteries
specifications
* Model: N70
* Nominal Voltage: 12V
* Rated Capacity: 70Ah
* Dimension
Length:304mm
Windth:173mm
Height:204mm
Total Height:202/225mm
Dry Weight:13.7kg
Acid Vol:5.0L
CCA-@18℃：520Amp
Reserve capacity:120Mins
Charging current:6.0Amp
Cell latout:1/2
Terminal Type:B
Container Feature:a
Advantages:
1)Safety vent plugs
Specially designed to eliminate acid loss&enhnce O2 &H2 recombination in the cell.
2)Corrosion resistant terminal post
Heavy duty terminal post improves current flow & cranking
3)Durable polypropylene cell container
Impact resistant container to house negative&positive cells
4)Intercell Connectors
Spot-Welded to increase current flow
5)Negative plate
Latest computer desinged grid provides perfect balanc with the positive plate to
give maximum performance
6)Positive plate
Latest omputer disinged grid to enhanc optimum utilisatin of active materials thereby
increasing performance.
7)PE enveloped separator
Low electrical resistant PE separator to elimilate internal short-circuit and allo better circulation of electrolyte.
Warnings:
1)- Matrix series batteries have acid in the case and are fully charged before
leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye
contact is made with electrolyte, seek medical advice immediately.
2)- Do not use a new battery with an old one.
3)- Do not use the battery in sealed container.
4)- Each battery should have detailed record including the ex-factory date,
installing date and using record.
5)- Check the connection of wire in a fixed interval (once a year). If there is
any looseness should tighten the wire.
6)- Wipe the surface of the battery with soft cloth in a fixed interval (once
three months) and always keep the battery clean.
7)- Avoid using any kind of organic solvents for cleaning the surface of the
battery.
