| Categories | Security battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP12 -12 |
| color | black |
| certificate | ISO9001,CE,IEC,MSDS |
| Business Type | factory |
| Life span | 3-5years |
| Brand | Matrix |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | NP12 -12.doc NP12 -12.pdf |
| Update Time | 12-19-2015 |

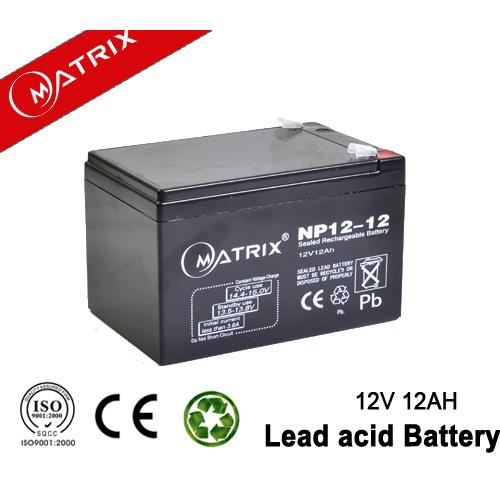

hot sale 12v 12ah security alarm battery heatproofDescripitions
Nominal Voltage
|
12V
|
||
Rated capacity(20 hour rate)
|
12AH
|
||
Dimensions
|
Length
|
151±1mm(5.94 inches)
|
|
Width
|
98±1mm(3.86inches)
|
||
Height
|
96±1mm(3.74inches)
|
||
Total Height
|
101±1mm(3.98 inches)
|
||
Weight Approx
|
3.40Kg(7.50lbs)
|
||
Capacity 25°C(77°F)
|
20 hour rate(0.60A, 10.50V)
|
12.00AH
|
|
10 hour rate(1.10A, 10.50V)
|
11.00AH
|
||
5 hour rate(2.04A, 10.50V)
|
10.20AH
|
||
1 hour rate(7.20A, 9.60V)
|
7.20AH
|
||
Internal Resistance
|
Full charged Battery at 25 °C (77°F)
|
16mΩ
|
|
Capacity affected by temperature
(20 hour rate)
|
40°C(104°F)
|
102%
|
|
25°C(77°F)
|
100%
|
||
0°C(32°F)
|
85%
|
||
-15°C(5°F)
|
65%
|
||
Self-Discharge
at 25°C(77°F)
|
Capacity after 3 month storage
|
91%
|
|
Capacity after 6 month storage
|
82%
|
||
Capacity after 12 month storage
|
64%
|
||
Charge
(constant voltage)
|
Cycle
|
Initial Charging Currentless than 3.60A Voltage
14.40-15.00 V
|
|
Float
|
Voltage 13.50-13.80V
|
||
Terminal
|
T2,T3
|
||
Features & advantage
1.Maintenance free
2.High power to weight ratio
3.No memory effect
4.Long service life
5.High discharge rate
6.Wide operating temperature range
7.Stronger and heatproof.
8.Plates made of high purity lead 99.994-99.996% dry charged battery
9.High quality AGM separator, pure acid
10. The cell of electric bicycle battery
Application
1.Fire protection ,security uninterruptible power supply, backup power supply
2.UPS systems for bank
3.Emergency lighting or small lamp fitting
4.Electric power system
5.Security system
6.electric bicycle, motorcycle,scooter
Contruction
