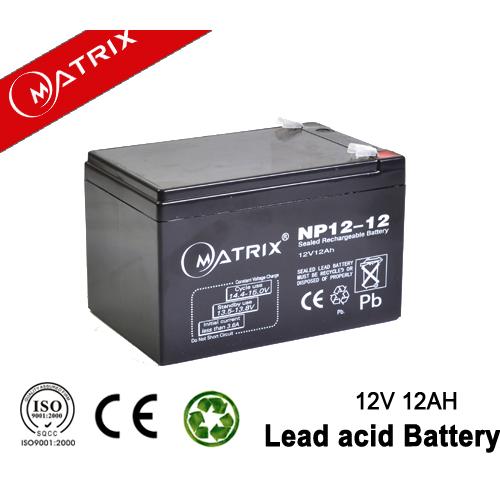

Lead Acid Storage Battery 12V 12AH Low Self Discharge

Lead Acid storage Battery 12V 12AH Low self discharge

Application:

1.Fire protection ,security uninterruptible power supply, backup power supply

2.UPS systems for bank

3.Emergency lighting or small lamp fitting

4.Electric power system

5.Security system

6.electric bicycle, motorcycle,scooter

Features

1.Low self discharge: lower than 3% of rated capacity per month under normal operatingtemperature.

2.ABS case (can be made with flame retardant V0)

3.No memory effect after repetitious usage or discharges

4.Maintenance-free operation

5.Sealed construction and leak proof

6.Safety valve regulated system

7.Operating in any position

8.Deep discharge recovery

9.Wide operating temperature range

Descripitions:

Nominal Voltage		12V
Rated capacity(20 hour rate)		12AH
Dimensions	Length	151±1mm(5.94 inches)
	Width	98±1mm(3.86inches)
	Height	96±1mm(3.74inches)
	Total Height	101±1mm(3.98 inches)
Weight Approx		3.40Kg(7.50lbs)
Capacity 25°C(77°F)		20 hour rate(0.60A, 10.50V)	12.00AH
		10 hour rate(1.10A, 10.50V)	11.00AH
		5 hour rate(2.04A, 10.50V)	10.20AH
		1 hour rate(7.20A, 9.60V)	7.20AH
Internal Resistance		Full charged Battery at 25 °C (77°F)	16mΩ
Capacity affected by temperature		40°C(104°F)	102%
(20 hour rate)		25°C(77°F)	100%
0°C(32°F)	85%
-15°C(5°F)	65%
Self-Discharge		Capacity after 3 month storage	91%
at 25°C(77°F)		Capacity after 6 month storage	82%
		Capacity after 12 month storage	64%
Charge	Cycle	Initial Charging Currentless than 3.60A Voltage14.40-15.00 V
(constant voltage)	Float	Voltage 13.50-13.80V
Terminal		T2,T3

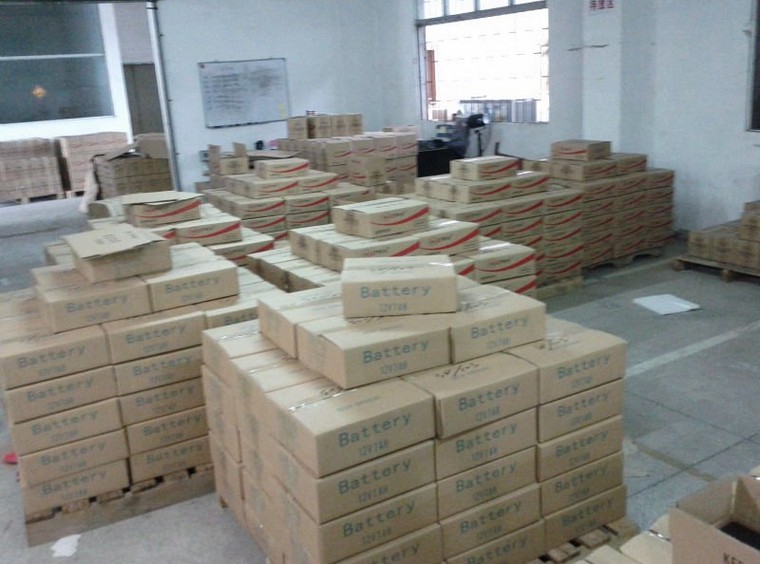

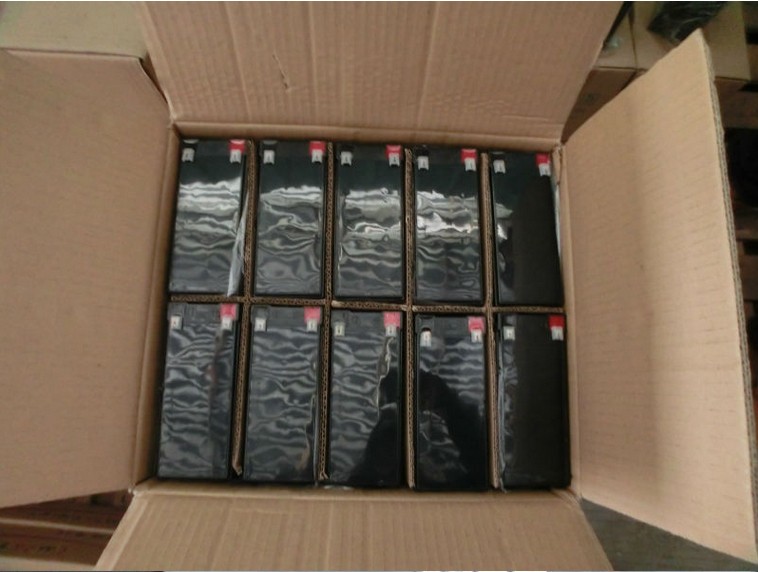

Package:

PP package, 1pc/box, 6pcs/carton

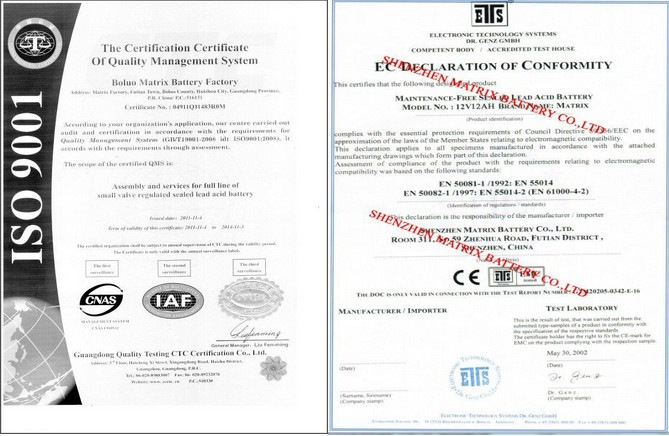

Certificates:

Product
