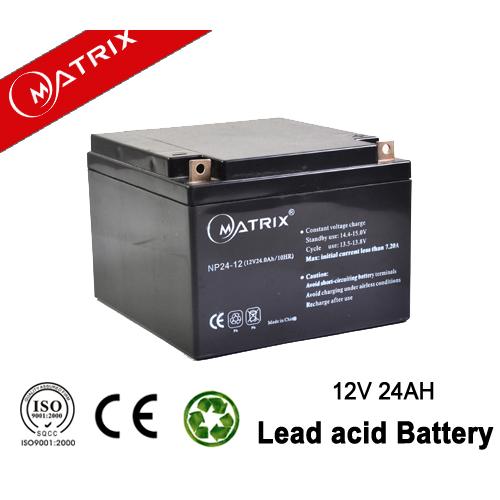

Power Storage 12V 24AH Sealed Lead Acid Batteries High Performance

Power storage 12V 24AH sealed Lead Acid Batteries high performance

Key Specifications

Nominal Voltage:12V

Rated capacity(20 hour rate):24AH

Dimensions:

Length:166±1mm(6.54 inches)

Width:175±1mm(6.89inches)

Height:125±1mm(4.92inches)

Total Height:125±1mm(4.92inches)

Weight Approx :7.50Kg(16.54lbs)

Product features:

♦ ABS case (can be made with flame retardant V0)

♦ No memory effect after repetitious usage or discharges

♦ Maintenance-free operation

♦ Sealed construction and leakproof

♦ Safety valve regulated system

♦ Deep discharge recovery

♦ Wide operating temperature range

Applications:

♦ Computers and uninterrupted power source (UPS)

♦ Fire fighting, safety device and alarm monitoring

♦Aviation,spaceflight and power storage

♦ Automatic office system

♦ Emergency lighting and car and ship starting system

♦Portable electric appliances and mining system

♦Traffic and navigation signal lamp

Characteristics:

Capacity 25°C		20 hour rate(1.20A, 10.50V)	24.00AH
		10 hour rate(2.29A, 10.50V)	22.90AH
		5 hour rate(4.08A, 10.50V)	20.40AH
		1 hour rate(15.07A, 9.60V)	15.07AH
Internal Resistance		Full charged Battery at 25 °C (77°F)	12mΩ
capacity affected by temperature (20 hour rate)		40°C(104°F)	102%
		25°C(77°F)	100%
		0°C(32°F)	85%
		-15°C(5°F)	65%
Self-Discharge at 25°C(77°F)		Capacity after 3 month storage	91%
		Capacity after 6 month storage	82%
		Capacity after 12 month storage	64%
Charge (constant voltage)	Cycle	Initial Charging Currentless than 9.60A Voltage14.10-14.40 V
Charge (constant voltage)	Float	Voltage 13.50-13.80V
Terminal		T32

Packing

Product
