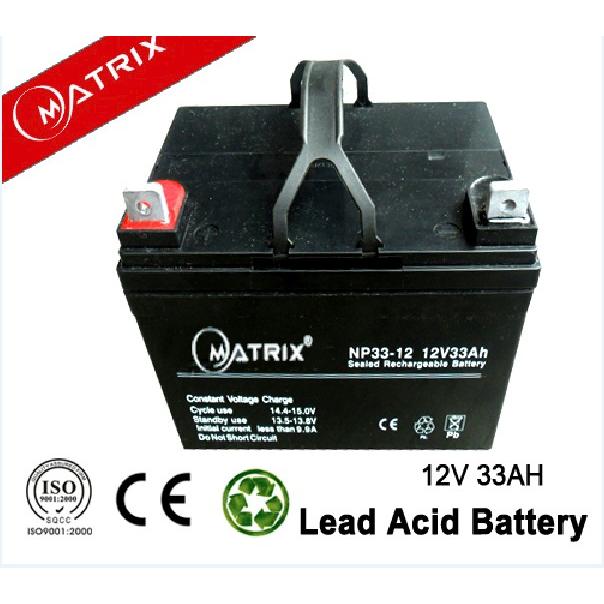

Lead-Acid Mobility Scooter Battery 12V 33AH Maintenance free

Specification :

Nominal Voltage		12V
Rated capacity(20 hour rate)		33AH
Dimensions	Length	195±1mm(7.8inches)
	Width	130±1mm(5.2inches)
	Height	155±1mm(6.2inches)
	Total Height	165±1mm(6.6inches)
Weight Approx		8.75Kg(19.25lbs)

General Features:

1)Extremely safe and stable chemistry

2)Non-spillable construction design

3)ABS containers and covers optional

4)safty valve installation of explosion proof

5)high quality and high realiability

6)exceptional deep discharge recovery performance

7)low shelf discharge characteristics

8)flexible design for multiple installation

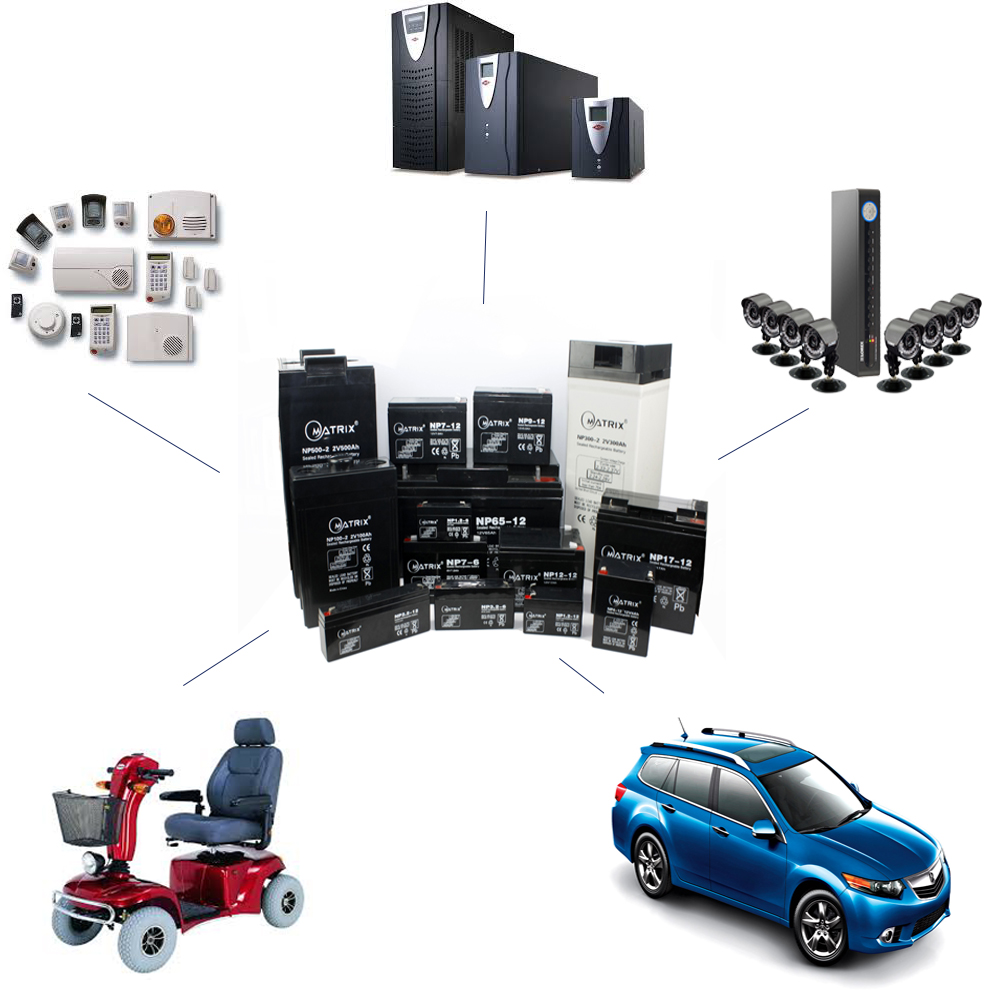

positionsApplications:

♦Telephone switchboards, electric equipments, medical equipments, medical instruments and meters

♦Computers and uninterrupted power source (UPS)

♦ower transmission and transformer station, switch control and accident lighting

♦Fire fighting, safety device and alarm monitoring

♦Aviation, spaceflight and power storage

♦Automatic office system

♦Radio communication

♦Emrgency lighting and car and ship starting system

♦Portable electric appliances and mining system♦Traffic and navigation signal lamp

d navigation signal lampWarnings:

1)- Matrix series accumulator have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the accumulator, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.

 2)- Do not use a new battery with an old one.

 3)- Do not use the battery in sealed container.

 4)- Each battery should have detailed record including the ex-factory date, installing date and using record.

5)- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.

6)- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the accumulator clean.

7)- Avoid using any kind of organic solvents for cleaning the surface of the accumulator.

Product list

MODEL	VOLTAGE	CAPACITY	DIMENSIONS								TERMINAL
			LENGTH		WIDTH		HEIGHT		TOTAL HEIGHT		TYPE	PLACE
	(V)	(Ah)	mm	inch	mm	inch	mm	inch	mm	inch
NP0.8-12	12	0.8	96	3.78	25	0.98	62	2.44	62	2.44	PLUG	O
NP1.2-12	12	1.2	97	3.82	43	1.69	51	2.05	57	2.28	T1	E
NP2.0-12	12	2.0	151	5.94	20	0.79	89	3.50	89	3.5	T1	C
NP2.2-12	12	2.2	178	7.01	35	1.38	61	2.40	67	2.64	T1	C
NP2.6-12	12	2.6	70	2.76	48	1.89	98	3.86	104	4.09	T1	C
NP3.2-12	12	3.2	134	5.28	67	2.64	61	2.40	67	2.64	T1	E
NP3.4-12	12	3.4	134	5.28	67	2.64	61	2.40	67	2.64	T1	E
NP4-12	12	4	90	3.54	70	2.76	101	3.98	107	4.21	T1	C
NP4.5-12	12	4.5	90	3.54	70	2.76	101	3.98	107	4.21	T1	C
NP5-12	12	5	90	3.54	70	2.76	101	3.98	107	4.21	T1	C
NP7-12	12	7	151	5.94	65	2.56	94	3.70	100	3.94	T1/T2	F
NP7.2-12	12	7.2	151	5.94	65	2.56	94	3.70	100	3.94	T1/T2	F
NP7.5-12	12	7.5	151	5.94	65	2.56	94	3.70	100	3.94	T1/T2	F
NP8.5-12	12	8.5	151	5.94	65	2.56	94	3.70	100	3.94	T1/T2	F
NP9-12	12	9	151	5.94	65	2.56	94	3.70	100	3.94	T1/T2	F
NP10-12A	12	10	151	5.94	65	2.56	111	4.37	117	4.61	T1/T2	F
NP12-12	12	12	151	5.94	98	3.86	96	3.74	101	3.98	T2	F
NP14-12	12	14	151	5.94	98	3.86	96	3.74	101	3.98	T2	F
NP17-12	12	17	181	7.13	76	3.03	167	6.57	167	6.57	T3/T8	D
NP18-12	12	18	181	7.13	76	3.03	167	6.57	167	6.57	T3/T8	D
NP20-12	12	20	181	7.13	76	3.03	167	6.57	167	6.57	T3/T8	D
NP24-12	12	24	166	6.54	175	6.89	125	4.92	125	4.92	T3/T8	D
NP24-12A	12	24	165	6.50	125	4.92	175	6.89	175	6.89	T6/T8	D
NP26-12	12	26	166	6.54	175	6.89	127	5.00	127	5.00	T3	D
NP28-12	12	28	166	6.54	175	6.89	125	4.92	125	4.92	T3/T8	D
NP28-12A	12	28	165	6.50	125	4.92	175	6.89	182/175	7.17/6.89	T6/T8	D
NP33-12	12	33	195	7.68	130	5.12	155	6.10	180/166	7.1/6.7	T7/T9	C
NP35-12	12	35	195	7.68	130	5.12	155	6.10	180/166	7.1/6.7	T7/T9	C
NP38-12	12	38	198	7.76	166	6.50	170	6.69	170	6.69	T4/T9	D
NP40-12	12	40	198	7.76	166	6.50	170	6.69	170	6.69	T4/T9	D
NP45-12	12	45	198	7.76	166	6.50	170	6.69	170	6.69	T4/T9	D
NP50-12	12	50	229	9.02	138	5.43	208	8.19	230/211	9.1/8.3	T5/T9	C
NP55-12	12	55	229	9.02	138	5.43	208	8.19	230/211	9.1/8.3	T5/T9	C
NP65-12	12	65	350	13.78	167	6.57	178	7.05	185/178	7.3/7.1	T5/T9	C
NP75-12	12	75	262	10.31	170	6.69	210	8.27	230	9.06	T6/T9	C
NP80-12	12	80	262	10.31	170	6.69	210	8.27	230	9.06	T6/T9	C
NP90-12	12	90	331	12.99	175	6.73	216	8.43	224/220	8.8/8.7	T5/T9	C
NP100-12	12	100	331	12.99	175	6.73	216	8.43	224/220	8.8/8.7	T5/T9	C
NP100-12A	12	100	409	16.10	175	6.73	225	8.86	225	8.86	T5/T11	C
NP120-12	12	120	409	16.10	175	6.73	225	8.86	225	8.86	T5/T11	C
NP150-12	12	150	485	19.09	170	6.69	240	9.45	240	9.45	T5/T11	C
NP180-12	12	180	522	20.60	235	9.30	218	8.60	225	8.9	T5/T11	E
NP200-12	12	200	522	20.60	235	9.30	218	8.60	225	8.9	T5/T11	E
