| Categories | 12V Battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP120-12 |
| Battery brand | Matrix |
| Cover | ABS |
| Safety valve | Rubber |
| FOB port | shenzhen |
| Terms of Payment | L/C,D/A,D_P,Western Union,MoneyGram,T/T |
Specification:
|
Battery Model |
NP 120-12 12V120AH |
|||
|
Designer Floating Life |
Up to 5 Years |
|||
|
Capacity (25℃) |
20HR(6.6A,10.50V) |
10HR(12.0A,10.80V) |
5HR(20.4A,10.8V) |
3HR(30A,10.8V) |
|
132AH |
120AH |
102AH |
90AH |
|
|
Dimensions |
Length |
Width |
Height |
Total Height |
|
409mm (16.1inch) |
176mm (6.9inch) |
225mm (8.9inch) |
225mm (8.9inch) |
|
|
Approx. Weight |
34.0Kg (74.9 lbs) |
|||
|
Internal Resistance |
Full charged at 25℃:≤6mΩ |
|||
|
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
|
Capacity Affected by Temp.(20HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
|
102% |
100% |
88% |
78% |
|
|
Charge Voltage(25oC) |
Cycle use |
Float use |
||
|
14.4-14.6V(-30mV/℃), max. Current: 30.0A |
13.6-13.8V (-20mV/℃) |
|||
VRLA Battery
1.completely sealed and maintenance-free, low self-discharge
2.100% precise quality testing, stable quality and high reliable performance
3.Unique grid alloy formula and updated manufacturing technique
4. Floating & standby use:up to 5 years
5.Cycle use 1: More than 280 cycles at 100% DOD
6. Cycle use 2: More than 1400 cycles at 30% DOD
Application:
1. Telecommunications
2. UPS/EPS
3.DC Power Supply
4. Solar system
5.Wind Power System
6.Auto Control System

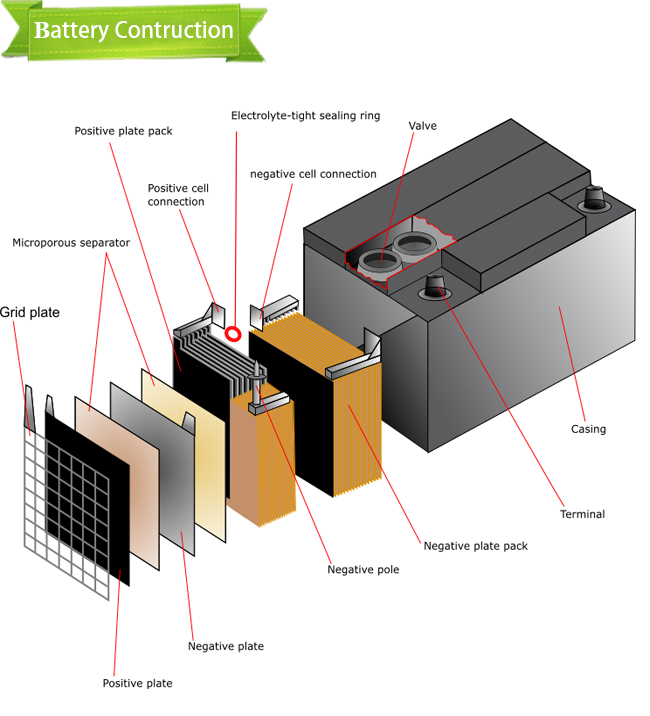

Construction:
1.Component ......Raw material
2.Positive ........Lead dioxide
3.Negative ........Lead
3.Container ........ABS
4.Cover ........ABS
5.Sealant ........Epoxy
6.Safety valve .... Rubber
7.Terminal ........Copper/Pb
8.Separator ........Fiber glass
9.Electrolyte ....... Sulfuric acid
