12v 200ah deep cycle batteries for solar system ups

12v 200ah deep cycle batteries for solar system ups

Categories	12V Battery
Brand	Matrix Lead acid battery
Model	NP200-12
Battery brand	Matrix
Cover	ABS
Safety valve	Rubber
FOB port	shenzhen
Terms of Payment	L/C,D/A,D_P,Western Union,MoneyGram,T/T

Details Information

Specification :

Battery Model	NP 200-12 12V200AH
Designer Floating Life	Up to 5 Years
Capacity (25℃)	20HR(10.0A,10.8V)	10HR(18.7A,10.8V)	5HR(34.0A,10.8V)	1HR(115.8A,10.5V)
	200AH	187AH	170AH	115.8AH
Dimensions	Length	Width	Height	Total Height
	523mm (20.59inch)	240mm (9.45inch)	220mm (8.66inch)	245mm (9.64inch)
Approx. Weight	57.50Kg (126.8 lbs)
Internal Resistance	Full charged at 25℃:≤3.0mΩ
Self Discharge	2% of capacity declined per month at (25℃)
Capacity Affected by Temp.(20HR)	40℃	25℃	0℃	-15℃
	102%	100%	85%	65%
Charge Voltage(25℃)	Cycle use		Float use
	14.4-14.6V(-30mV/℃), max. Current:50.0A		13.6-13.8V (-20mV/℃)

VRLA Battery

completely sealed and maintenance-free, low self-discharge
100% precise quality testing, stable quality and high reliable performance
Unique grid alloy formula and updated manufacturing technique
Floating & standby use:up to 5 years
Cycle use 1: More than 280 cycles at 100% DOD
Cycle use 2: More than 1400 cycles at 30% DOD

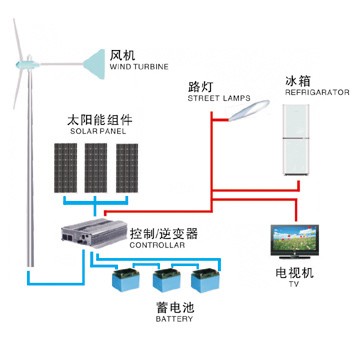

Application:

Telecommunications UPS/EPS
DC Power Supply Solar system
Wind Power System Auto Control System

Construction:

Component ......Raw material Positive ........Lead dioxide
Negative ........Lead Container ........ABS
Cover ........ABS Sealant ........Epoxy
Safety valve ....Rubber Terminal ........Copper
Separator ........Fiber glass Electrolyte .......Sulfuric acid
