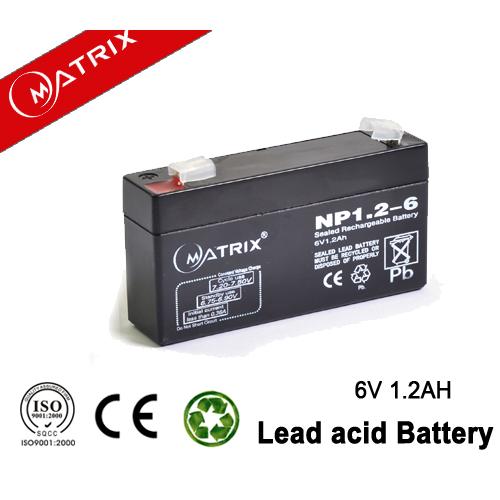

6V 1.2AH VRLA battery for Traffic Sign Light

Specification：
Nominal Voltagea;6V
Rated capacity(20 hour rate):1.2AHDimensions
Length:97±1mm(3.86 inches)
Width:24±1mm(0.98 inches)
Height:52±1mm(2.04 inches)
Total Height:56±1mm(2.20 inches)

Application:
UPS(uninterruptible power supply)
Emergency Power Supply
Safety and Security system
Solar Power system Lighting products Portable Power Supply
Parking Lock
Electronic Scale
Traffic Sign Light

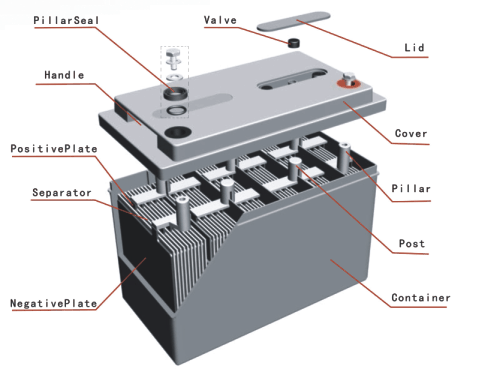

Battery Construction

Features:
Low self discharge: lower than 3% of rated capacity per month under normal operating temperature
ABS case (can be made with flame retardant V0)
No memory effect after repetitious usage or discharges
Maintenance-free operation
Sealed construction and leak proof
Safety valve regulated system
Operating in any position
Deep discharge recovery
Wide operating temperature range

Capacity 25°C(77°F)		20 hour rate(0.06A, 5.25V)	1.20AH
		10 hour rate(0.11A, 5.25V)	1.10AH
		5 hour rate(0.21A, 5.25V)	1.05AH
		1 hour rate(0.72A, 4.80V)	0.72AH
Internal Resistance		Full charged Battery at 25°C(77°F)	37mΩ
Capacity affected by temperature(20 hour rate)		40°C(104°F)	102%
		25°C(77°F)	100%
		0°C(32°F)	85%
		-15°C(5°F)	65%
Self-Discharge at 25°C(77°F)		Capacity after 3 month storage	91%
		Capacity after 6 month storage	82%
		Capacity after 12 month storage	64%
Charge (constant voltage)	Cycle	Initial Charging Current less than 0.36AVoltage Charge 7.20~7.50V
	Float	Voltage 6.75~6.90V
Terminal		T0

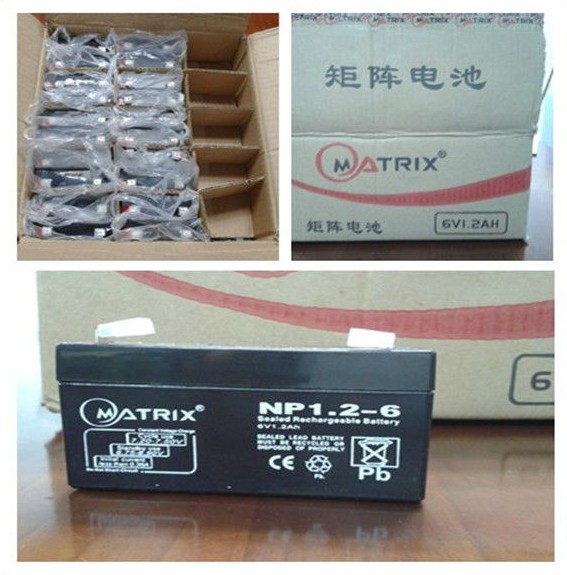

Packing

Product list

MODEL	VOLTAGE	CAPACITY	DIMENSIONS								TERMINAL
			LENGTH		WIDTH		HEIGHT		TOTAL HEIGHT		TYPE	PLACE
	(V)	(Ah)	mm	inch	mm	inch	mm	inch	mm	inch
NP0.4-6	6	0.4	57	2.24	14	0.55	51	2.01	51	2.01	PLUG	G
NP1-6	6	1	51	2.01	42	1.65	51	2.01	57	2.24	T1	A
NP1.2-6	6	1.2	97	3.82	24	0.94	52	2.05	58	2.28	T1	C
NP2-6	6	2	43	1.69	37	1.46	76	2.99	76	2.99	TAB	L
NP2.8-6	6	2.8	66	2.60	33	1.30	97	3.82	104	4.09	T1	A
NP2.8-6A	6	2.8	66	2.60	33	1.30	100	3.94	106	4.17	T1	A
NP3.2-6	6	3.2	134	5.28	35	1.38	61	2.40	67	2.64	T1	C
NP3.2-6A	6	3.2	67	2.64	34	1.34	118	4.65	124	4.88	T1	A
NP3.2-6B	6	3.2	125	4.92	33	1.30	61	2.40	67	2.64	T1	C
NP3.5-6	6	3.5	194	7.64	25	0.98	50	1.97	56	2.20	T1	C
NP4-6	6	4	70	2.76	47	1.85	101	3.98	107	4.21	T1	A
NP4.5-6	6	4.5	70	2.76	47	1.85	101	3.98	107	4.21	T1	A
NP5-6	6	5	70	2.76	47	1.85	101	3.98	107	4.21	T1	A
NP6.5-6	6	6.5	85	3.35	47	1.85	101	3.98	107	4.21	T1	A
NP4-6A	6	4	70	2.76	47	1.85	101	3.98	106	4.17	TAB	A
NP4.5-6A	6	4.5	70	2.76	47	1.85	101	3.98	106	4.17	TAB	A
NP4-6B	6	4	70	2.76	47	1.85	101	3.98	103	4.06	T1	A
NP4.5-6B	6	4.5	70	2.76	47	1.85	101	3.98	103	4.06	T1	A
NP3.6-6WA	6	3.6	39	1.54	39	1.54	150	5.91	150	5.91	PLUG	/
NP4-6WB	6	4	194	7.64	25	0.98	62	2.44	62	2.44	PLUG	/
NP4.9-6	6	4.9	242	9.53	35	1.38	47	1.85	47	1.85	PLUG	N
NP5-6A	6	5	170	6.69	35	1.38	70	2.76	76	2.99	T1	C
NP6-6S	6	6	85	3.35	48	1.89	100	3.94	106	4.17	T1	A
NP7-6	6	7	151	5.94	34	1.34	94	3.70	100	3.94	T1/T2	C
NP7.2-6	6	7.2	151	5.94	34	1.34	94	3.70	100	3.94	T1/T2	C
NP7.5-6	6	7.5	151	5.94	34	1.34	94	3.70	100	3.94	T1/T2	C
NP7.8-6	6	7.8	151	5.94	34	1.34	94	3.70	100	3.94	T1/T2	C
NP8.5-6	6	8.5	151	5.94	34	1.34	94	3.70	100	3.94	T1/T2	C
NP9-6	6	9	151	5.94	34	1.34	94	3.70	100	3.94	T1/T2	C
NP8-6	6	8	98	3.86	56	2.20	117	4.61	119	4.69	T1	B
NP10-6	6	10	151	5.94	50	1.97	94	3.70	100	3.94	T1/T2	C
NP12-6	6	12	151	5.94	50	1.97	94	3.70	100	3.94	T1/T2	C
NP14-6	6	14	108	4.25	71	2.80	140	5.51	140	5.51	T2/-T1	/
NP20-6	6	20	157	6.18	83	3.27	125	4.92	130	5.12	T3	C
NP36-6	6	36	161	6.34	87	3.43	163	6.42	169	6.65	T2/T3	C
NP60-6	6	60	185	7.28	112	4.41	205	8.07	205	8.07	T2/T3	C
NP100-6	6	100	195	7.68	170	6.69	206.5	8.13	212.5	8.37	T6	/
NP120-6	6	120	280	11.02	128	5.04	203	7.99	203	7.99	T6	C
NP150-6	6	150	260	10.24	180	7.09	247	9.72	253	9.96	T7	/
NP200-6	6	200	306	12.00	168	6.61	222	8.74	228	8.98	T8	C
