86-755-66577116
| Categories | 6V |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP4.0-6 |
| color | black |
| feature | no memory effect |
| type | battery factory |
| name | Lead Acid Battery 6v 4ah |
| self discharge | low |
| oem | avaliable |
| usage | ups,Aviation, spaceflight and power storage |
| protection | explosion proof |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | 6V 4AH.xls |
| Update Time | 12-17-2015 |

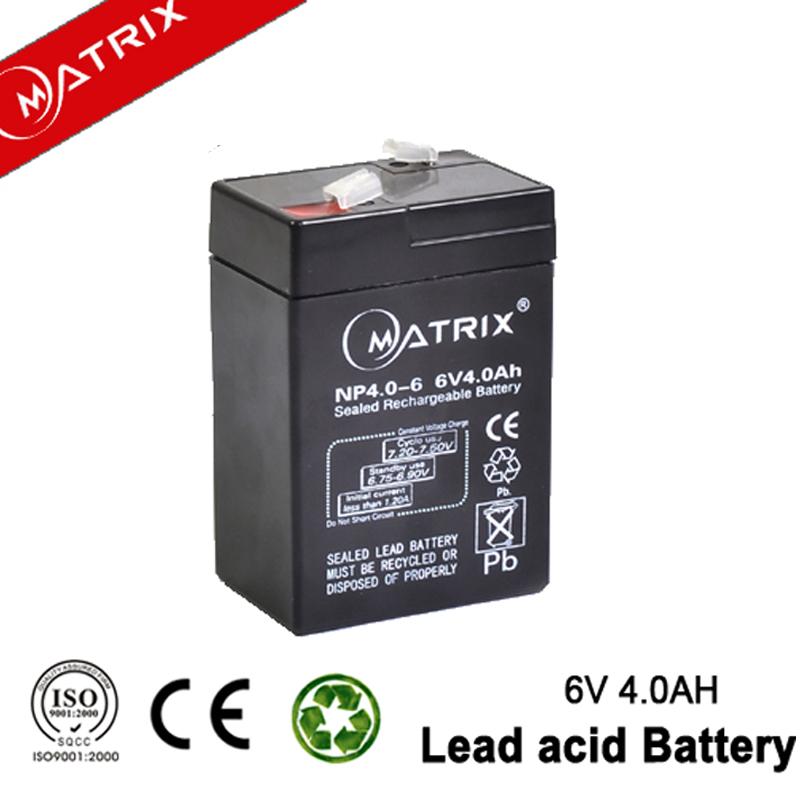

6V 4AH rechargeable Sealed Lead Acid Battery wholesale
Specification:
Nominal Voltage：6V
Rated capacity(20 hour rate): 4.0AH
Dimensions
Length:70±1mm(2.76inches)
Width:47±1mm(1.89inches)
Height:101±1mm(3.98inches)
Total Hight:107±1mm(4.21inches)
| Capacity 25°C(77°F) | 20 hour rate(0.20A, 5.25V) | 4.00AH | |
| 10 hour rate(0.37A, 5.25V) | 3.70AH | ||
| 5 hour rate(0.68A, 5.25V) | 3.40AH | ||
| 1 hour rate(2.40A, 4.80V) | 2.40AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) | 25mΩ | |
| Capacity affected by temperature (20 hour rate) | 40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25°C(77°F) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Charge (constant voltage) | Cycle | Initial Charging Current less than 1.20A Voltage Charge 7.20~7.50V | |
| Float | Voltage 6.75~6.90V | ||
| Terminal | T1 | ||
Features:
Low selfdischarge: lower than 3% of rated capacity per month under normal operatingtemperature
ABS case (can be made with flame retardant V0)
No memory effect after repetitious usage or discharges
Maintenance-free operation
Sealed construction and leak proof
Safety valve regulated system
Operating in any position
Deep discharge recovery
Wide operatingtemperature range
Application:
1.Fire protection ,security uninterruptible power supply, backup power supply
2.UPS Uninterruptible power supply systems for bank
3.Telephone and telecommunication equipment
4.Emergency lighting or small lamp fitting
5.Electric power system
6.Security system

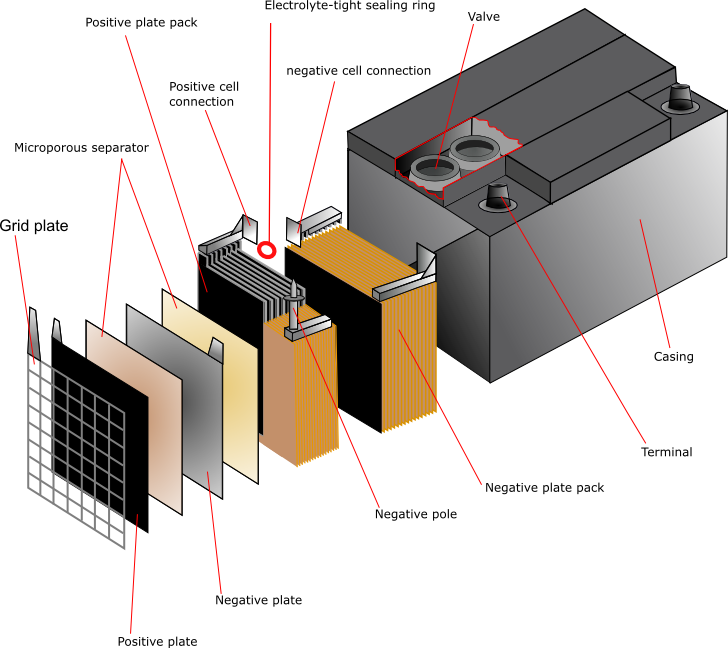

Construction

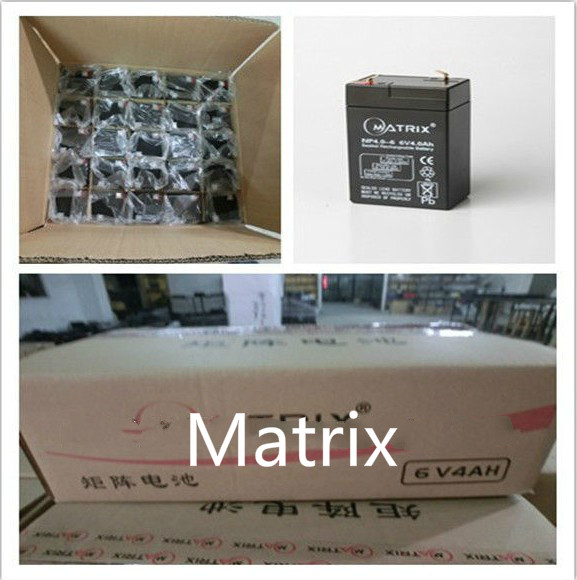

Packing:
