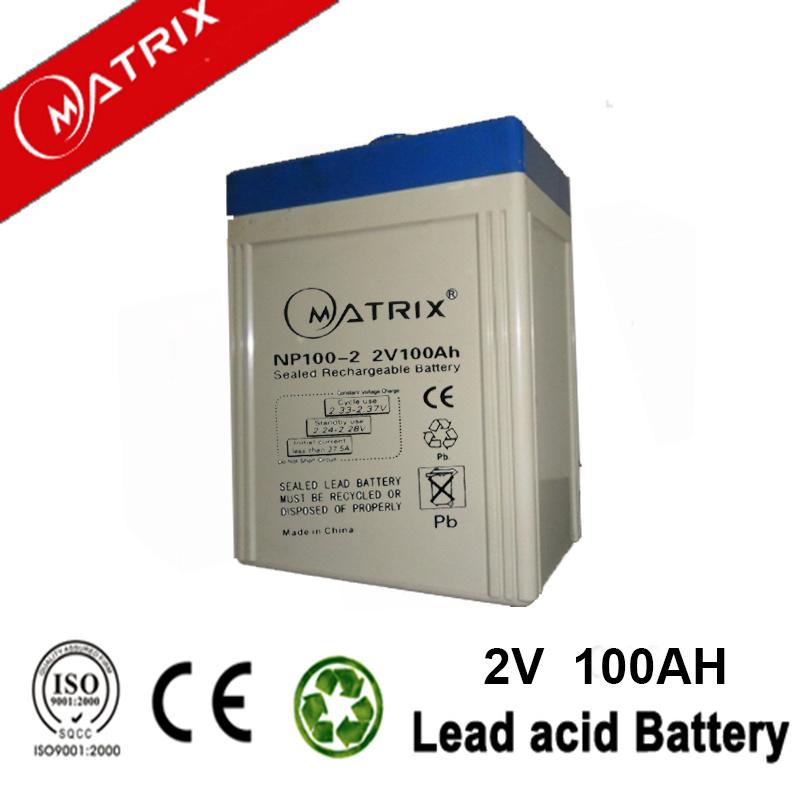

2v 100ah Sealed Rechargeable Lead Acid Battery / Valve Regulated Lead Acid Batteries

Categories 2V Battery
Brand Matrix Lead acid battery
Model NP100-2
Battery brand Matrix
Cover ABS
Safety valve Rubber
FOB port shenzhen
Terms of Payment L/C,D/A,D_P,Western Union,MoneyGram,T/T
Download DOC 2v 100ah.xls
Update Time 12-17-2015

  Details Information


2v 100ah sealed rechargeable lead acid battery / valve regulated lead acid batteries


VRLA Battery

  • High performance, completely maintenance-free, low self-discharge
  • 100% precise quality testing, stable quality and high reliable performance
  • Unique grid alloy formula and updated manufacturing technique
  • Floating & standby use：up to 10 years
  • Cycle use 1: Up to 280 cycles at 100% DOD
  • Cycle use 2: Up to 1800 cycles at 30% DOD

Application:

  • Telecommunications
  • Wind power system
  • Wheelchair
  • Golf trolley
  • Solar system
  • Engine starting
  • Floor cleaning machines
  • Boats

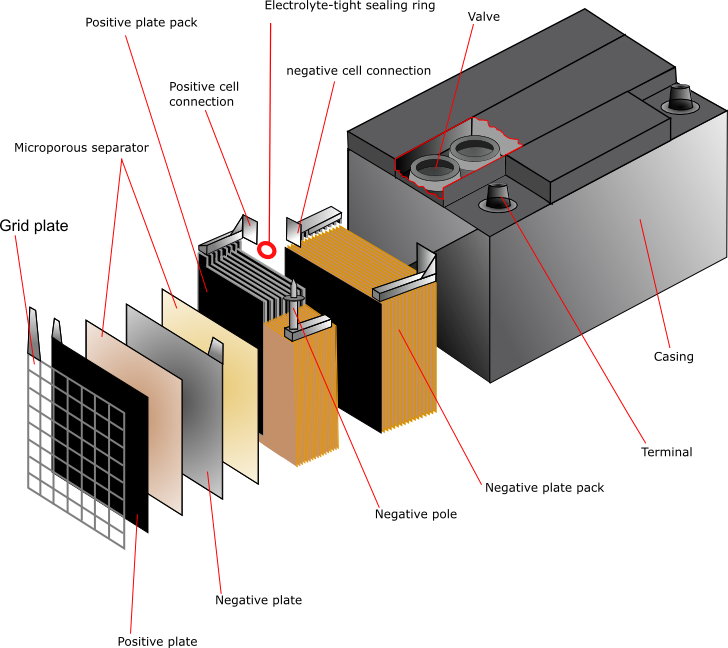

Construction:

  • Component ......Raw material
  • Positive ........Lead dioxide
  • Negative ........Lead
  • Container ........ABS
  • Cover ........ABS
  • Sealant ........Epoxy
  • Safety valve .... Rubber
  • Terminal ........Copper
  • Separator ........Fiber glass
  • Electrolyte ....... Sulfuric acid

Specification:

Battery Model

NP 100 -2  2V100AH

Designer Floating Life

Up to 10 Years

Capacity  (25℃)

10HR(10.0A,1.8V)

5HR(16.06A,1.8V)

3HR(23.66A,1.8V)

1HR(50.66A,1.8V)

100.0AH

80.30AH

70.98AH

50.66AH

Dimensions

Length

Width

Height

Total Height

170mm (6.69inch)

72mm (2.83inch)

205mm (8.07inch)

228mm (8.98inch)

Approx. Weight

5.90Kg (13.01 lbs)

Internal Resistance

Full charged at 25℃:≤2.10mΩ

Self Discharge

2% of capacity declined per month at (25℃)

Capacity Affected

by Temp.(20HR)

40℃

25℃

0℃

-15℃

102%

100%

85%

35%

Charge Voltage(25℃)

Cycle use

Float use

2.30-2.40V(-3.3mV/℃), max. Current:25.0A

2.20-2.25V (-3.3mV/℃)




Constant Current Discharge(CC,Unit:A)  at 25℃(77℉)

F.V/Time

10Min

15Min

30Min

1Hr

2Hr

3Hr

4Hr

5Hr

6Hr

8Hr

10Hr

20Hr

1.85V/Cell

214.45

146.21

70.18

49.38

30.80

23.06

19.01

15.65

14.18

11.60

9.75

4.93

1.80V/Cell

220.00

150.00

72.00

50.66

31.60

23.66

19.50

16.06

14.55

11.90

10.00

5.06

1.75V/Cell

222.64

151.80

72.86

51.27

31.98

23.94

19.73

16.25

14.72

12.04

10.12

5.12

Constant Power Discharge (CP,Unit:W) at 25℃(77℉)

F.V/Time

10Min

15Min

30Min

1Hr

2Hr

3Hr

4Hr

5Hr

6Hr

8Hr

10Hr

20Hr

1.85V/Cell

418.2

285.1

136.9

96.3

60.1

45.0

37.1

30.5

27.7

22.6

19.0

9.6

1.80V/Cell

429.0

292.5

140.4

98.8

61.6

46.1

38.0

31.3

28.4

23.2

19.5

9.9

1.75V/Cell

434.1

296.0

142.1

100.0

62.4

46.7

38.5

31.7

28.7

23.5

19.7

10.0




MODEL VOLTAGE CAPACITY DIMENSIONS TERMINAL
LENGTH WIDTH HEIGHT TOTAL HEIGHT TYPE PLACE
(V) (Ah) mm inch mm inch mm inch mm inch
NP0.3-2 2 0.3 17.5 0.69 6.5 0.26 68 2.68 68 2.68 TAB /
NP0.5-2 2 0.5 17.5 0.69 8.5 0.33 68 2.68 68 2.68 TAB /
NP4.5-2 2 4.5 46 1.81 25 0.98 100 3.94 106 4.17 T1 G
NP5-2 2 5 46 1.81 25 0.98 100 3.94 106 4.17 T1 G
NP6-2 2 6 51 2.01 33 1.30 99 3.90 105 4.13 T1 G
NP7-2 2 7 51 2.01 33 1.30 199 3.90 105 4.13 T1 G
NP15-2 2 15 70 2.76 47 1.85 101 3.98 107 4.21 T1 A
NP50-2 2 50 161 6.30 50 2.00 166 6.50 175 6.90 T4 B
NP65-2 2 65 170 6.69 72 2.83 205 8.07 212 8.35 T6 G
NP72-2 2 72 170 6.69 72 2.83 205 8.07 212 8.35 T6 G
NP100-2 2 100 170 6.69 72 2.83 205 8.07 212 8.35 T10 A
NP120-2 2 120 170 6.69 98 3.86 205 8.07 212 8.35 T10 A
NP150-2 2 150 170 6.69 98 3.86 205 8.07 212 8.35 T10 A
NP170-2 2 170 170 6.69 98 3.86 205 8.07 212 8.35 T10 A
NP200-2 2 200 170 6.69 110 4.33 328 12.90 350 13.78 T10 G
NP230-2 2 230 170 6.69 110 4.33 328 12.90 350 13.78 T10 G
NP250-2 2 250 170 6.69 110 4.33 328 12.90 350 13.78 T10 G
NP300-2 2 300 170 6.69 150 5.91 328 12.90 350 13.78 T10 G
NP350-2 2 350 170 6.69 150 5.91 328 12.90 350 13.78 T10 G
NP400-2 2 400 210 8.27 175 6.89 330 13.00 350 13.78 T10 H
NP425-2 2 425 210 8.27 175 6.89 330 13.00 350 13.78 T10 H
NP450-2 2 450 210 8.27 175 6.89 330 13.00 350 13.78 T11 C
NP500-2 2 500 240 9.45 175 6.89 330 13.00 350 13.78 T10 H
NP550-2 2 550 240 9.45 175 6.89 330 13.00 350 13.78 T10 H
NP600-2 2 600 300 11.81 175 6.89 330 13.00 350 13.78 T10 H
NP700-2 2 700 300 11.81 175 6.89 330 13.00 350 13.78 T10 H
NP800-2 2 800 410 16.14 175 6.89 330 13.00 351 13.82 T10 I
NP1000-2 2 1000 475 18.70 175 6.89 328 12.90 350 13.78 T10 I
NP1100-2 2 1100 475 18.70 175 6.89 328 12.90 350 13.78 T10 I
NP1200-2 2 1200 475 18.70 175 6.89 328 12.90 350 13.78 T10 I
NP1400-2 2 1400 403 15.87 354 13.94 339 13.40 349 13.74 T10 I
NP1500-2 2 1500 403 15.87 354 13.94 339 13.40 349 13.74 T10 J
NP1700-2 2 1700 403 15.87 354 13.94 339 13.40 349 13.74 T10 J
NP1800-2 2 1800 403 15.87 354 13.94 339 13.40 349 13.74 T10 J
NP2000-2 2 2000 490 19.29 350 13.78 339 13.40 349 13.74 T10 K
NP2200-2 2 2200 490 19.29 350 13.78 339 13.40 349 13.74 T10 K
NP2300-2 2 2300 490 19.29 350 13.78 339 13.40 349 13.74 T10 K
NP2500-2 2 2500 490 19.29 350 13.78 339 13.40 349 13.74 T10 K
NP2800-2 2 2800 709 27.91 350 13.78 337 13.30 349 13.74 T10 K
NP3000-2 2 3000 709 27.91 350 13.78 337 13.30 349 13.74 T10 K
