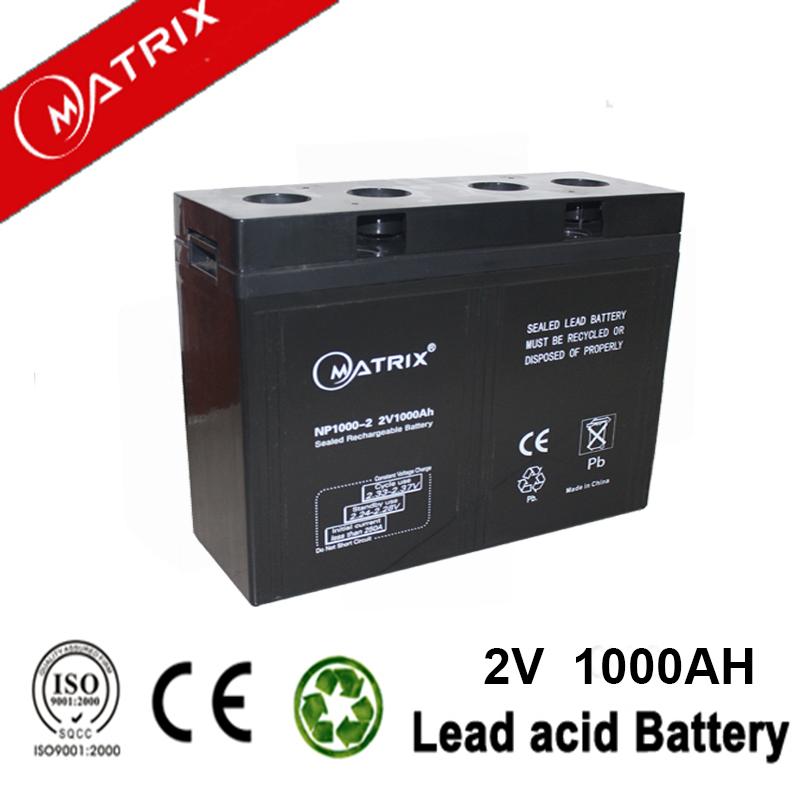

Battery Model

NP 1000 -2  2V1000AH

Designer Floating Life

Up to 10 Years

Capacity  (25℃)

10HR(100.00A,1.8V)

5HR(160.60A,1.8V)

3HR(236.60A,1.8V)

1HR(506.60A,1.8V)

1000.00AH

803.00AH

709.80AH

506.60AH

Dimensions

Length

Width

Height

Total Height

474mm (18.66inch)

173mm (6.81inch)

329mm (12.95inch)

365mm (14.37inch)

Approx. Weight

61.50Kg (135.61 lbs)

Internal Resistance

Full charged at 25℃:≤0.42mΩ

Self Discharge

2% of capacity declined per month at (25℃)

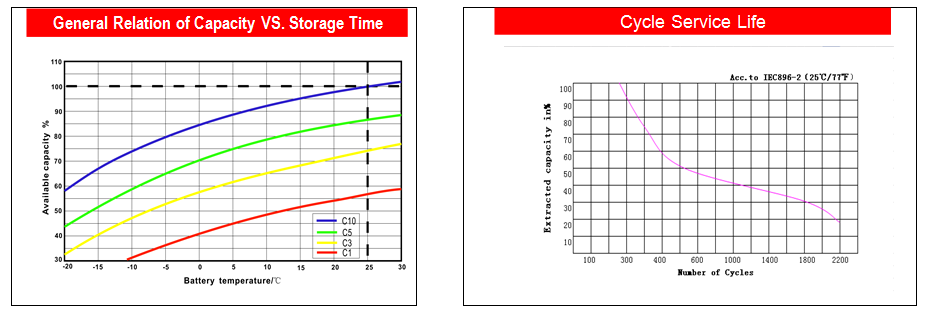

Capacity Affected

by Temp.(20HR)

40℃

25℃

0℃

-15℃

102%

100%

85%

65%

Charge Voltage(25℃)

Cycle use

Float use

2.40-2.50V(-5mV/℃), max. Current:250.0A

2.25-2.30V (-3.0mV/℃)

Constant Current Discharge(CC,Unit:A)  at 25℃(77℉)

F.V/Time

10Min

15Min

30Min

1Hr

2Hr

3Hr

4Hr

5Hr

6Hr

8Hr

10Hr

20Hr

1.85V/Cell

2144.47

1462.14

701.83

493.81

308.02

230.63

190.08

156.55

141.83

116.00

97.48

49.32

1.80V/Cell

2200.00

1500.00

720.00

506.60

316.00

236.60

195.00

160.60

145.50

119.00

100.00

50.60

1.75V/Cell

2226.40

1518.00

728.64

512.68

319.79

239.44

197.34

162.53

147.25

120.43

101.20

51.21

Constant Power Discharge (CP,Unit:W) at 25℃(77℉)

F.V/Time

10Min

15Min

30Min

1Hr

2Hr

3Hr

4Hr

5Hr

6Hr

8Hr

10Hr

20Hr

1.85V/Cell

4181.7

2851.2

1368.6

962.9

600.6

449.7

370.7

305.3

276.6

226.2

190.1

96.2

1.80V/Cell

4290.0

2925.0

1404.0

987.9

616.2

461.4

380.3

313.2

283.7

232.1

195.0

98.7

1.75V/Cell

4341.5

2960.1

1420.8

999.7

623.6

466.9

384.8

316.9

287.1

234.8

197.3

99.9
