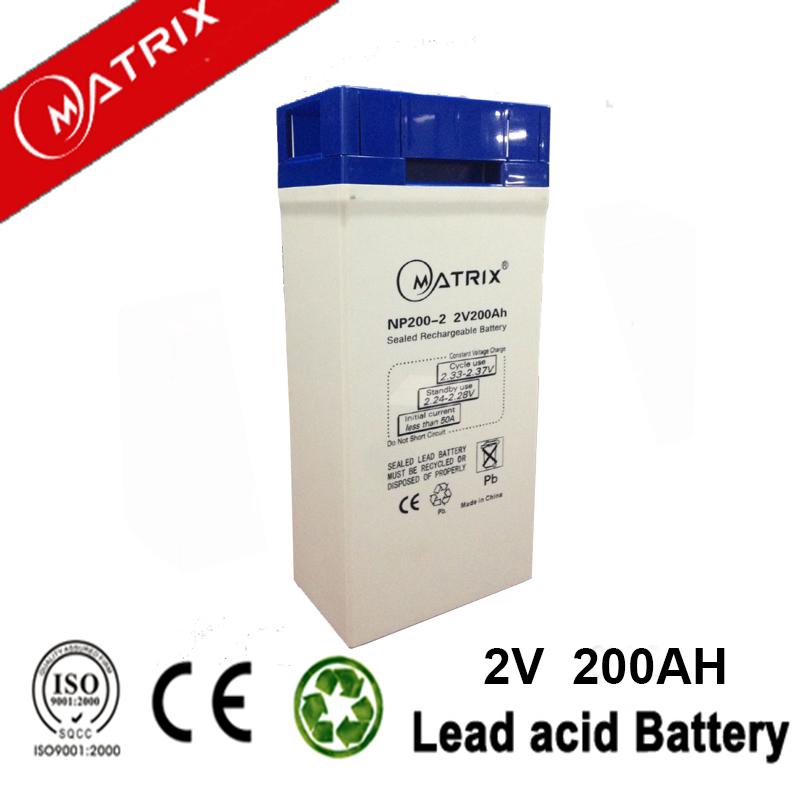

Battery Model

NP200 -2  2V200AH

Designer Floating Life

Up to 10 Years

Capacity  (25℃)

10HR(20.0A,1.8V)

5HR(34.0A,1.8V)

3HR(50.0A,1.8V)

1HR(101.3A,1.8V)

200.0AH

170AH

150.0AH

101.3AH

Dimensions

Length

Width

Height

Total Height

170mm (6.69inch)

110mm (4.33inch)

334mm (13.15inch)

365mm (14.37inch)

Approx. Weight

13.40Kg (29.55 lbs)

Internal Resistance

Full charged at 25℃:≤0.75mΩ

Self Discharge

2% of capacity declined per month at (25℃)

Capacity Affected

by Temp.(20HR)

40℃

25℃

0℃

-15℃

102%

100%

85%

65%

Charge Voltage(25℃)

Cycle use

Float use

2.40-2.50V(-5mV/℃), max. Current:50.0A

2.25-2.30V (-3.0mV/℃)

Constant Current Discharge(CC,Unit:A)  at 25℃(77℉)

F.V/Time

10Min

15Min

30Min

1Hr

2Hr

3Hr

4Hr

5Hr

6Hr

8Hr

10Hr

20Hr

1.85V/Cell

428.89

292.43

140.37

98.76

61.60

46.13

38.02

31.31

28.37

23.20

19.50

9.86

1.80V/Cell

440.00

300.00

144.00

101.32

63.20

47.32

39.00

32.12

29.10

23.80

20.00

10.12

1.75V/Cell

445.28

303.60

145.73

102.54

63.96

47.89

39.47

32.51

29.45

24.09

20.24

10.24

Constant Power Discharge (CP,Unit:W) at 25℃(77℉)

F.V/Time

10Min

15Min

30Min

1Hr

2Hr

3Hr

4Hr

5Hr

6Hr

8Hr

10Hr

20Hr

1.85V/Cell

836.3

570.2

273.7

192.6

120.1

89.9

74.1

61.1

55.3

45.2

38.0

19.2

1.80V/Cell

858.0

585.0

280.8

197.6

123.2

92.3

76.1

62.6

56.7

46.4

39.0

19.7

1.75V/Cell

868.3

592.0

284.2

199.9

124.7

93.4

77.0

63.4

57.4

47.0

39.5

20.0
