| Categories | 12V Battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP150-12 |
| Battery brand | Matrix |
| Color | bule |
| Safety valve | Rubber |
| FOB port | shenzhen |
| Terms of Payment | L/C,D/A,D_P,Western Union,MoneyGram,T/T |
|
|
|

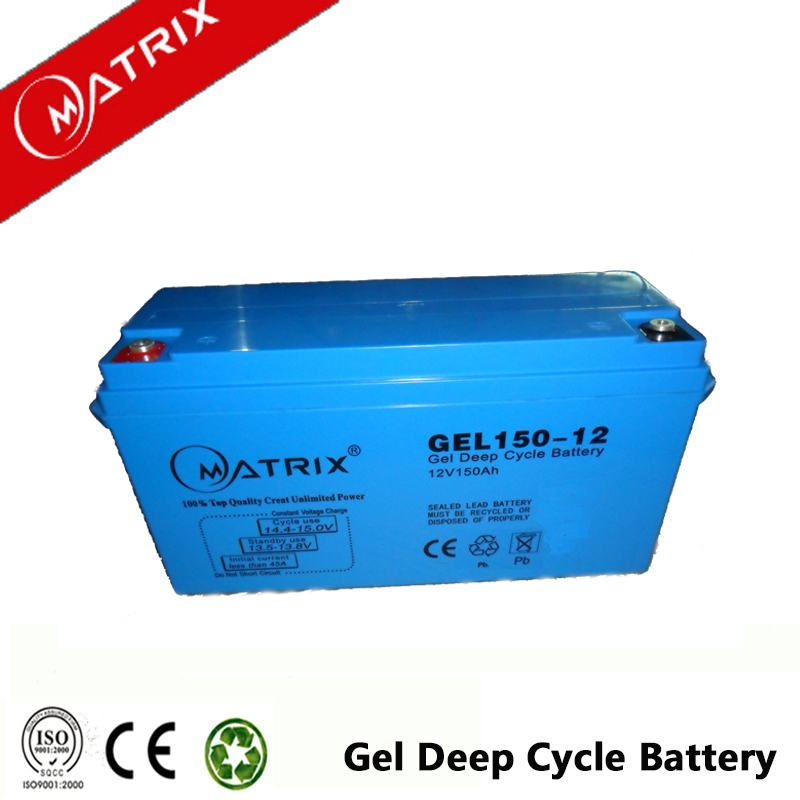

GEL Series-- Storage-type Gelled Battery
Completely sealed and maintenance-free, low self-discharge
100% precise quality testing, stable quality and high reliable performance
Unique grid alloy formula, Gelled electrolyte formula and updated manufacturing
technique
Floating & standby use:up to 12 years
Cycle use 1: More than 350 cycles at 100% DOD
Cycle use2: More than 1800cycles at 30% DOD
Application
Telecommunications
UPS/EPS
DC Power Supply
Solar system
Wind Power System
Auto Control Sytem
Speification:
|
Battery Model |
MNG 100-12 12V100AH |
|||
|
Designed Floating Life |
Up to 12 Years |
|||
|
Capacity (25℃) |
20HR(5.2A,10.50V) |
10HR(10.0A,10.80V) |
5HR(17A,10.8V) |
3HR(25.8A,10.8V) |
|
104AH |
100AH |
85.0AH |
77.4AH |
|
|
Dimensions |
Length |
Width |
Height |
Total Height |
|
330mm (12.99inch) |
173mm 6.81inch) |
215mm (8.46inch) |
220mm (8.66inch) |
|
|
Approx. Weight |
29.5Kg (65 lbs) |
|||
|
Internal Resistance |
Full charged at 25℃:≤6.5mΩ |
|||
|
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
|
Capacity Affected by Temp.(20HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
|
102% |
100% |
88% |
78% |
|
|
Charge Voltage(25oC) |
Cycle use |
Float use |
||
|
14.4-14.6V(-30mV/℃), max. Current: 30.0A |
13.6-13.8V (-20mV/℃) |
|||
