| Categories | GEL battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | GEL150-12 |
| Battery brand | Matrix |
| case | abs |
| Safety valve | Rubber |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | GEL150-12.doc |
| Update Time | 12-19-2015 |

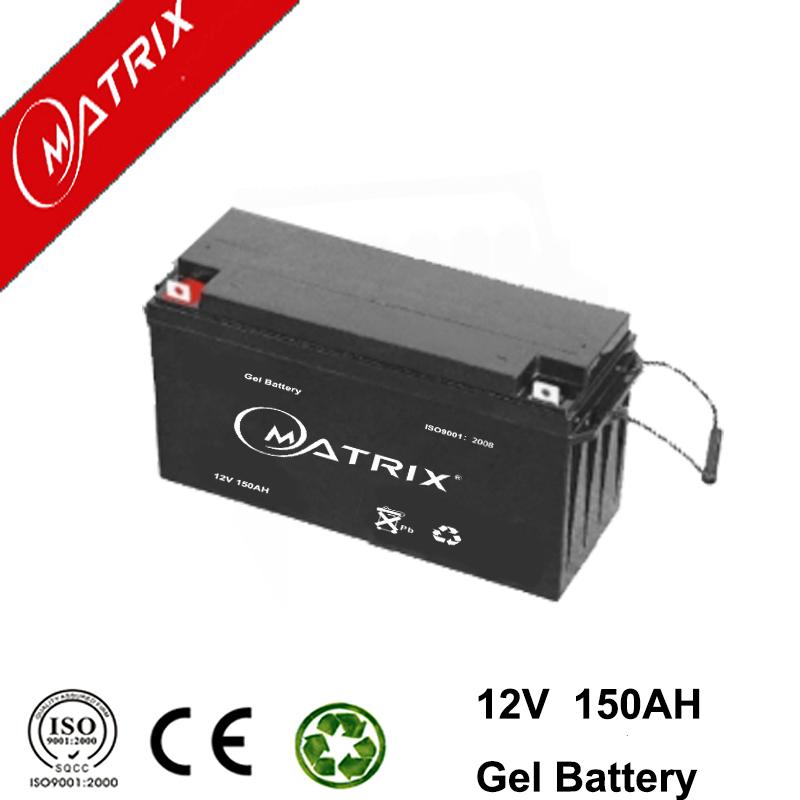

12v 150Ah deep cycle GEL batteries For DC Power Supply
MNG Series-- Storage-type Gelled Battery
completely sealed and maintenance-free, low self-discharge
100% precise quality testing, stable quality and high reliable performance
Unique grid alloy formula, Gelled electrolyte formula and updated manufacturing technique

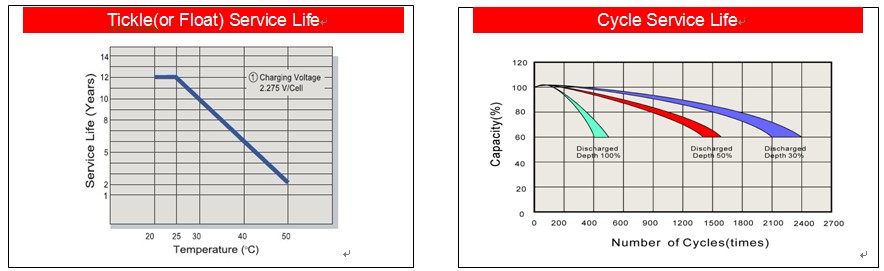

Floating & standby use:up to 12 years
Cycle use 1: More than 350 cycles at 100% DOD
Cycle use2: More than 1800cycles at 30% DOD
Application:
Telecommunications
UPS/EPSDC Power Supply
Solar systemWind Power System
Auto Control Sytem
Construction:Component ......Raw material
Positive ........Lead dioxide
Negative ........LeadContainer ........ABS
Cover ........ABS
Sealant ........Epoxy
Safety valve .... Rubber
Terminal ........Copper/Pb
Separator ........Fiber glass
Electrolyte ....... Gelled acid
Speification:
|
Battery Model |
MNG 150-12 12V150AH |
|||
|
Designed Floating Life |
Up to 12 Years |
|||
|
Capacity (25℃) |
20HR(7.50A,10.8V) |
10HR(15.0A,10.8V) |
5HR(25.5A,10.8V) |
1HR(83.5A,10.5V) |
|
150.0AH |
150.0AH |
127.5AH |
83.5AH |
|
|

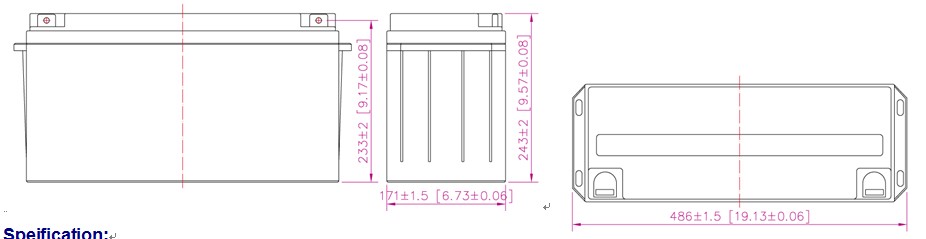

Dimensions |
Length |
Width |
Height |
Total Height |
|
486mm (19.13inch) |
171mm (6.73inch) |
233mm (9.17inch) |
243mm (9.57inch) |
|
|
Approx. Weight |
42.30Kg (93.27 lbs) |
|||
|
Internal Resistance |
Full charged at 25℃:≤6.3mΩ |
|||
|
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
|
Capacity Affected by Temp.(20HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
|
102% |
100% |
85% |
65% |
|
|
Charge Voltage(25oC) |
Cycle use |
Float use |
||
|
14.4-14.6V(-30mV/℃), max. Current: 36.0A |
13.6-13.8V (-20mV/℃) |
|||
|
Constant Current Discharge(CC,Unit:A) at 25℃(77℉) |
||||||||||||
|
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
|
9.6V |
480 |
317 |
255 |
171 |
90 |
52.5 |
38.6 |
30 |
24.8 |
17.55 |
15.75 |
8.51 |
|
10.2V |
465 |
286 |
240 |
163.5 |
84.6 |
50.1 |
37.5 |
29.3 |
24.3 |
17.1 |
15.45 |
8.25 |
|
10.5V |
450 |
255 |
210 |
153 |
81.9 |
48.9 |
36.6 |
28.8 |
24 |
16.95 |
15.15 |
8.22 |
|
10.8V |
434 |
241 |
195 |
141 |
79.2 |
47.7 |
35.7 |
28.4 |
23.4 |
16.5 |
15 |
8.1 |
|
11.1V |
419 |
226 |
180 |
126 |
76.5 |
46.5 |
34.5 |
27.6 |
22.8 |
16.05 |
14.25 |
7.65 |
|
Constant Power Discharge (CP,Unit:W) at 25℃(77℉) |
||||||||||||
|
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
|
9.6V |
4958 |
3380 |
2736 |
1839 |
972 |
576 |
429 |
338 |
281 |
201 |
182 |
98.9 |
|
10.2V |
4969 |
3189 |
2689 |
1835 |
957 |
577 |
434 |
340 |
283 |
200 |
182 |
96.8 |
|
10.5V |
4916 |
2906 |
2398 |
1761 |
948 |
567 |
426 |
337 |
281 |
199 |
179 |
86.3 |
|
10.8V |
4867 |
2776 |
2250 |
1634 |
922 |
559 |
421 |
335 |
277 |
196 |
178 |
85 |
|
11.1V |
4754 |
2612 |
2099 |
1474 |
900 |
550 |
410 |
329 |
272 |
192 |
172 |
80 |
