| Categories | GEL battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | GEL180-12 |
| Cover | ABS |
| Terminal | Copper/Pb |
| Battery brand | Matrix |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | GEL180-12.doc |
| Update Time | 12-19-2015 |

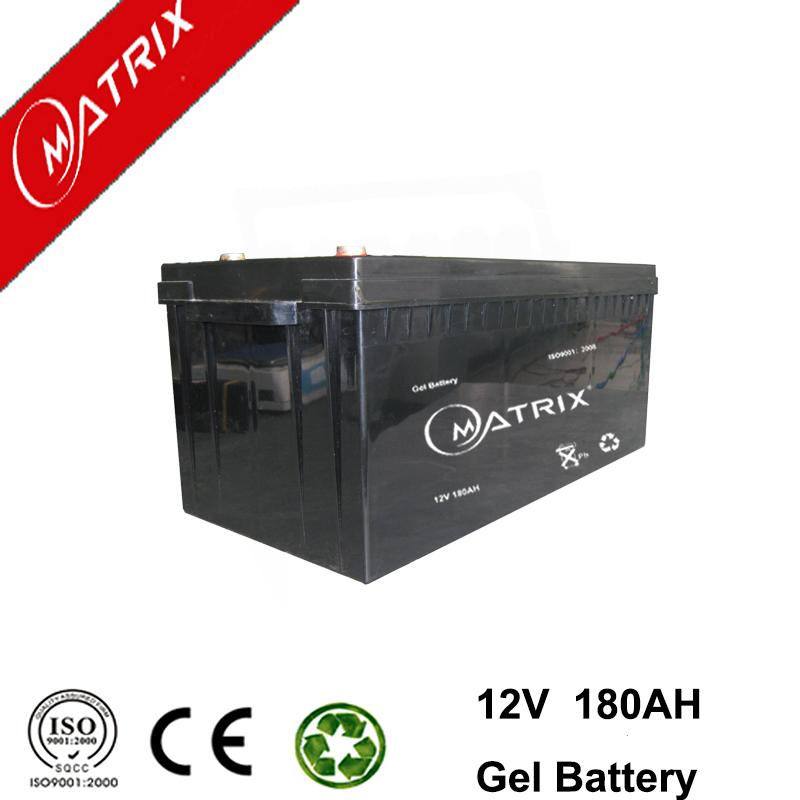

Maintenance free 12v 180Ah GEL battery for solar system
12v 180Ah GEL battery
MNG Series-- Storage-type Gelled Battery
completely sealed and maintenance-free, low self-discharge
100% precise quality testing, stable quality and high reliable performance
Unique grid alloy formula, Gelled electrolyte formula and updated manufacturing technique
Application:
Telecommunications
UPS/EPSDC Power Supply
Solar system
Wind Power System
Auto Control Sytem
Construction:Component ......Raw material
Positive ........Lead dioxideNegative ........Lead
Container ........ABSCover ........ABS
Sealant ........Epoxy
Safety valve .... Rubber
Terminal ........Copper/Pb
Speification:
|
Battery Model |
MM 180-12 12V180AH |
|||
|

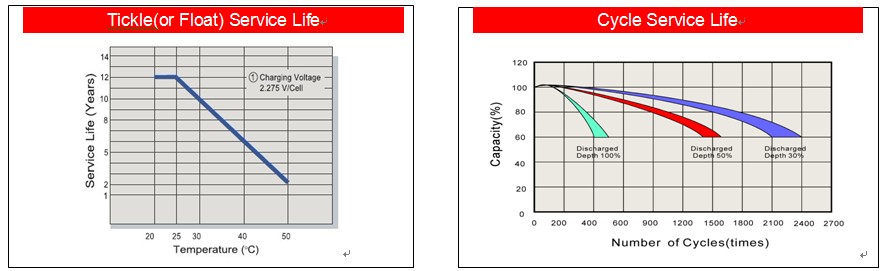

Designed Floating Life |
Up to 12 Years |
|||
|
Capacity (25℃) |
20HR(9.0A,10.8V) |
10HR(18A,10.8V) |
5HR(31.5A,10.8V) |
1HR(108A,10.5V) |
|
180AH |
173AH |
153AH |
108AH |
|
|

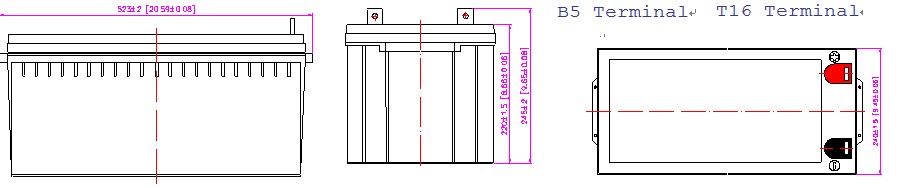

Dimensions |
Length |
Width |
Height |
Total Height |
|
523mm (20.59inch) |
240mm (9.45inch) |
220mm (8.66inch) |
245mm (9.64inch) |
|
|
Approx. Weight |
55.50Kg (123 lbs) |
|||
|
Internal Resistance |
Full charged at 25℃:≤3.0mΩ |
|||
|
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
|
Capacity Affected by Temp.(20HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
|
102% |
100% |
85% |
65% |
|
|
Charge Voltage(25℃) |
Cycle use |
Float use |
||
|
14.4-14.6V(-30mV/℃), max. Current:60A |
13.6-13.8V (-20mV/℃) |
|||
|
Constant Current Discharge(CC,Unit:A) at 25℃(77℉) |
||||||||||||
|
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
|
9.60V |
576 |
378 |
306 |
205 |
108 |
63 |
46.3 |
36 |
30.6 |
21.1 |
18.9 |
10.1 |
|
10.2V |
558 |
342 |
288 |
196 |
101 |
60 |
45 |
35 |
29 |
20.5 |
18.5 |
9.9 |
|
10.5V |
540 |
306 |
252 |
184 |
98 |
58.5 |
44 |
34.5 |
28.5 |
20.3 |
18.2 |
9.7 |
|
10.8V |
518 |
288 |
234 |
169 |
94.5 |
57 |
42.5 |
34 |
28 |
19.8 |
18 |
9.5 |
|
11.1V |
503 |
270 |
216 |
151 |
92 |
55.5 |
41.4 |
33 |
27.4 |
19.3 |
17.1 |
9 |
|
Constant Power Discharge (CP,Unit:W) at 25℃(77℉) |
||||||||||||
|
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
|
9.60V |
5932 |
3893 |
3151 |
2152 |
1134 |
661 |
486 |
378 |
321 |
221 |
198 |
106 |
|
10.2V |
5747 |
3522 |
2966 |
2058 |
1060 |
630 |
471 |
367 |
304 |
215 |
194 |
104 |
|
10.5V |
55624 |
3151 |
2595 |
1932 |
1029 |
614 |
462 |
362 |
299 |
213 |
191 |
101 |
|
10.8V |
5335 |
2966 |
2410 |
1774 |
992 |
598 |
446 |
357 |
294 |
207 |
189 |
99.5 |
|
11.1V |
5180 |
2781 |
2224 |
1585 |
966 |
582 |
434 |
346 |
287 |
202 |
179 |
94 |
