| Categories | GEL battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | GEL65-12 |
| case | abs |
| Battery brand | Matrix |
| Terminal | Copper/Pb |
| Safety valve | Rubber |
| Electrolyte | Gelled acid |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | GEL65-12.doc |
| Update Time | 12-19-2015 |

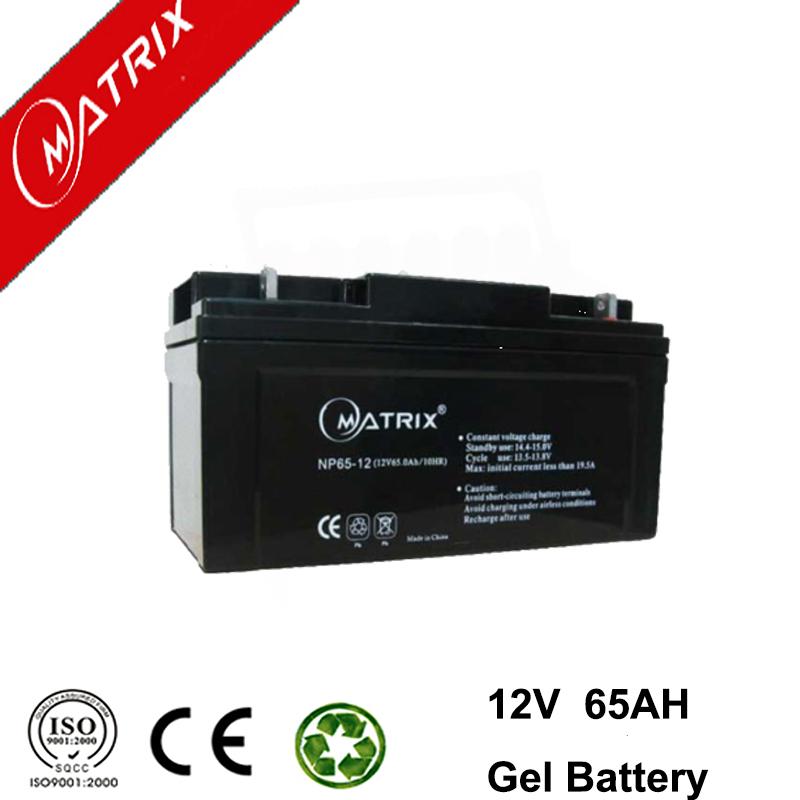

Good price 12v 65ah gel battery for inverter
MNG Series--Storage-type Gelled Battery
Application:
Telecommunications
UPS/EPS
DC Power Supply
Solar system
Wind Power System
Auto Control Sytem
Construction:
Component ......Raw material
Positive ........Lead dioxide
Negative ........Lead
Container ........ABS
Cover ........ABS
Sealant ........Epoxy
Safety valve .... Rubber
Terminal ........Copper/Pb
Separator ........Fiber glass
Electrolyte ....... Gelled acid
Speification:
|
Battery Model |
MMG 65-12 12V65AH |
|||
|

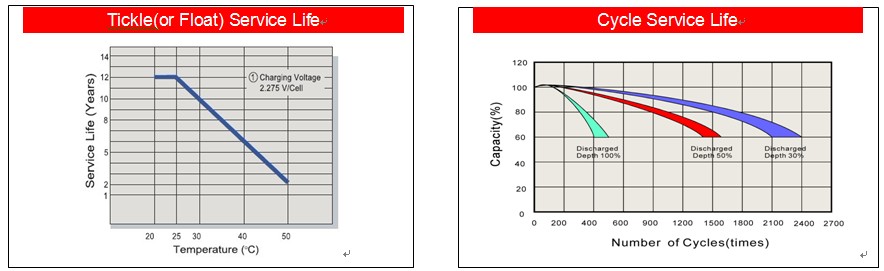

Designed Floating Life |
Up to 12 Years |
|||
|
Capacity (25℃) |
20HR(3.38A,10.5V) |
10HR(6.64A,10.8V) |
5HR(11.05A,10.8V) |
1HR(39A,10.5V) |
|
|
67.60AH |
66.40AH |
55.25AH |
39AH |
|

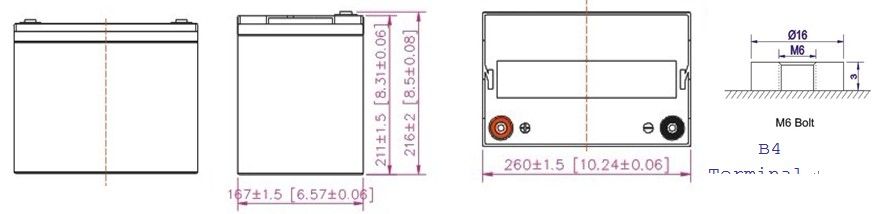

Dimensions |
Length |
Width |
Height |
Total Height |
|
|
350mm (13.78inch) |
167mm (6.57inch) |
174mm (6.85inch) |
174mm (6.85inch) |
|
Approx. Weight |
20.5Kg (45.2 lbs)±5% |
|||
|
Internal Resistance |
Full charged at 25℃:≤6.0mΩ |
|||
|
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
|
Capacity Affected by Temp.(20HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
|
|
102% |
100% |
85% |
65% |
|
Charge Voltage(25℃) |
Cycle use |
Float use |
||
|
|
14.40-15.00V(-30mV/℃), max. Current:21.0A |
13.50-13.80V (-20mV/℃) |
||
|

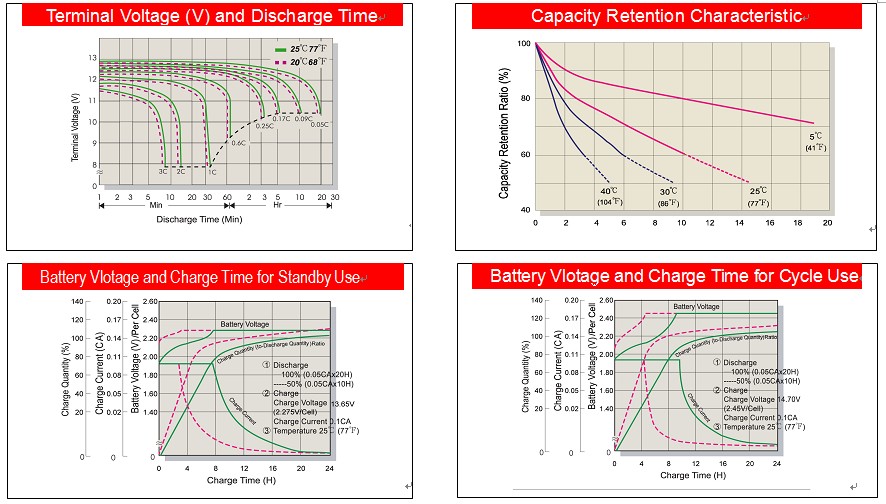

Constant Current Discharge(CC,Unit:A) at 25℃(77℉) |
||||||||||||
|
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
|
9.6V |
208 |
137 |
111 |
74.1 |
39 |
22.8 |
16.7 |
13 |
10.7 |
7.61 |
6.83 |
3.69 |
|
10.2V |
202 |
124 |
104 |
70.9 |
36.7 |
21.7 |
16.3 |
12.7 |
10.5 |
7.41 |
6.7 |
3.58 |
|
10.5V |
195 |
111 |
91 |
66.3 |
35.3 |
21.2 |
15.9 |
12.5 |
10.4 |
7.35 |
6.57 |
3.58 |
|
10.8V |
188 |
104 |
85 |
61.1 |
34.3 |
20.7 |
15.5 |
12.3 |
10.1 |
7.15 |
6.5 |
3.51 |
|
11.1V |
182 |
98 |
78 |
54.5 |
33.2 |
20.2 |
15 |
12 |
9.9 |
6.96 |
6.18 |
3.32 |
|
Constant Power Discharge (CP,Unit:W) at 25℃(77℉) |
||||||||||||
|
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
|
9.6V |
2149 |
1465 |
1185 |
|||||||||
