| Categories | GEL battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | GEL70-12 |
| case | abs |
| Battery brand | Matrix |
| Terminal | Copper/Pb |
| Safety valve | Rubber |
| Electrolyte | Gelled acid |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | GEL70-12.doc |
| Update Time | 12-19-2015 |

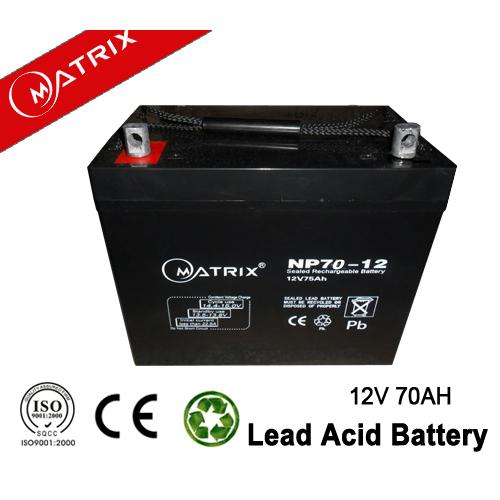

UPS gel battery 12v 70ah with abs case
MNG Series--Storage-type Gelled BatteryApplication:
Telecommunications
UPS/EPS
DC Power Supply
Solar system
Wind Power System
Auto Control Sytem
Construction:Component ......Raw material
Positive ........Lead dioxide
Negative ........Lead
Container ........ABS
Cover ........ABS
Sealant ........Epoxy
Safety valve .... Rubber
Terminal ........Copper/Pb
Separator ........Fiber glass
Electrolyte ....... Gelled acid
Speification:
|
Battery Model |
MM 70-12 12V70AH |
|||
|

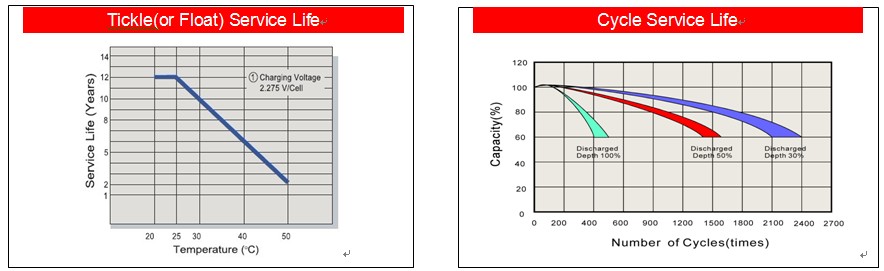

Designed Floating Life |
Up to 12 Years |
|||
|
Capacity (25℃) |
20HR(3.5A,10.8V) |
10HR(7.0A,10.8V) |
5HR(11.9A,10.8V) |
3HR(17.5A,10.8V) |
|
|
72AH |
70AH |
61AH |
54AH |
|

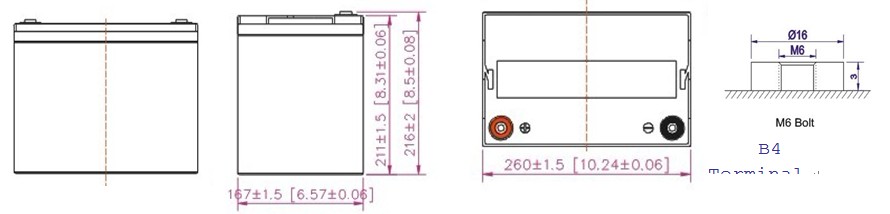

Dimensions |
Length |
Width |
Height |
Total Height |
|
|
260mm (10.2inch) |
168mm (6.6inch) |
211mm (8.3inch) |
233/214mm (9.2/8.4inch) |
|
Approx. Weight |
20Kg (44.1 lbs) |
|||
|
Internal Resistance |
Full charged at 25℃:≤5.5mΩ |
|||
|
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
|
Capacity Affected by Temp.(20HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
|
|
102% |
100% |
85% |
65% |
|
Charge Voltage(25℃) |
Cycle use |
Float use |
||
|
|
14.4-14.6V(-30mV/℃), max. Current:60A |
13.6-13.8V (-20mV/℃) |
||
|

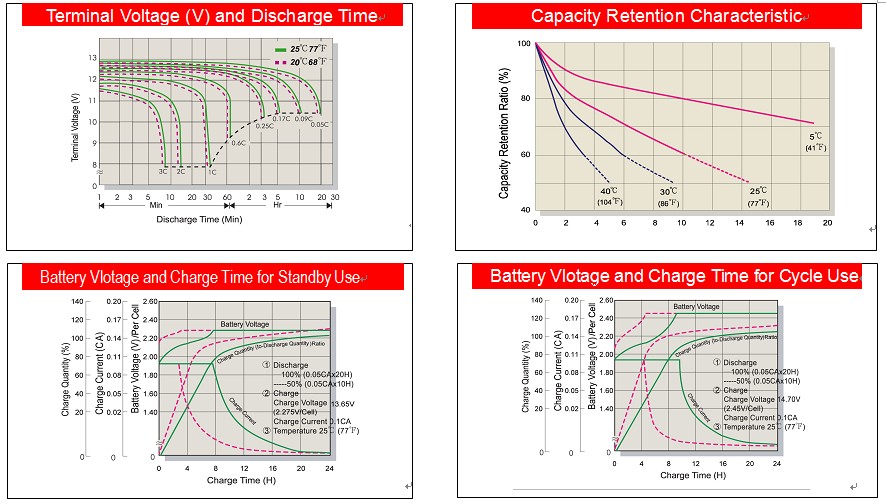

Constant Current Discharge(CC,Unit:A) at 25℃(77℉) |
||||||||||||
|
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
|
9.6V |
224 |
147 |
119 |
79.8 |
42 |
24.5 |
18.0 |
14 |
11.9 |
8.2 |
7.4 |
3.9 |
|
10.2V |
217 |
133 |
112 |
76.3 |
39.2 |
23.1 |
17.8 |
13.9 |
11.7 |
8.1 |
7.2 |
3.8 |
|
10.5V |
210 |
126 |
105 |
71.4 |
39 |
22.4 |
17.6 |
13.6 |
11.5 |
8.0 |
7.2 |
3.7 |
|
10.8V |
201 |
112 |
91 |
66.5 |
38.5 |
21 |
17.5 |
12.9 |
11.2 |
7.7 |
7.0 |
3.5 |
|
11.1V |
196 |
107 |
87 |
56 |
36 |
20 |
16 |
12 |
11.0 |
7.6 |
6.6 |
3.3 |
|
Constant Power Discharge (CP,Unit:W) at 25℃(77℉) |
||||||||||||
|
F.V/Time |
5Min |
10Min |
15Min |
30Min |
1Hr |
2Hr |
3Hr |
4Hr |
5Hr |
8Hr |
10Hr |
20Hr |
|
9.6V |
2307 |
1543 |
1249 |
838 |
441 |
257 |
189 |
147 |
130 |
86 |
78 |
41 |
|
10.2V |
2235 |
1396 |
1176 |
801 |
411 |
242 |
187 |
145 |
122 |
85 |
76 |
40 |
|
10.5V |
2163 |
1323 |
1102 |
749 |
409 |
278 |
184 |
142 |
120 |
84 |
75 |
38 |
|
10.8V |
2070 |
1176 |
955 |
698 |
404 |
220 |
183 |
135 |
117 |
81 |
73 |
36 |
|
11.1V |
2018 |
1102 |
913 |
580 |
378 |
210 |
168 |
126 |
115 |
79 |
69 |
35 |
