| Categories | UPS battery |
|---|---|
| Brand | Matrix Lead acid battery |

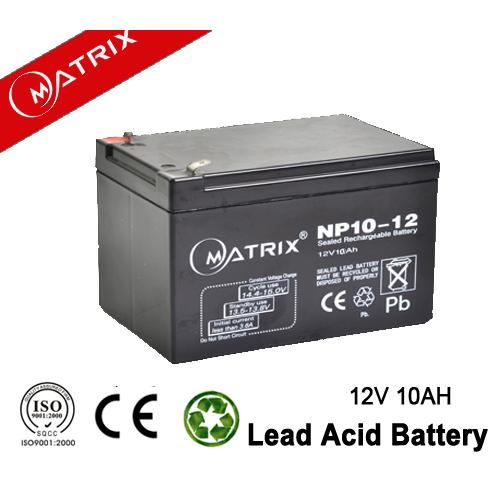

| Model | NP10-12 |
| color | black |
| case | abs |
| rechargeable | yes |
| Type: | vrla battery |
| Usage: | emergency light, security ,UPS |
| Terminal | T2,T3 |
| More | |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | Western Union,T/T |
| Download DOC | NP10-12.xlsx |
| Update Time | 12-18-2015 |
|
Nominal Voltage |
12V |
||
|
Rated capacity(20 hour rate) |
10AH |
||
|
Dimensions |
Length |
151±1mm(5.94 inches) |
|
|
Width |
98±1mm(3.86inches) |
||
|
Height |
96±1mm(3.74inches) |
||
|
Total Height |
101±1mm(3.98 inches) |
||
|
Weight Approx |
3.20Kg(7.04lbs) |
||
|
Capacity 25°C(77°F) |
20 hour rate(0.60A, 10.50V) |
10.00AH |
|
|
10 hour rate(1.10A, 10.50V) |
9.60AH |
||
|
5 hour rate(2.04A, 10.50V) |
8.40AH |
||
|
1 hour rate(7.20A, 9.60V) |
7.20AH |
||
|
Internal Resistance |
Full charged Battery at 25 °C (77°F) |
16mΩ |
|
|
Capacity affected by temperature |
40°C(104°F) |
102% |
|
|
|
|
25°C(77°F) |
100% |
|
|
|
0°C(32°F) |
85% |
|
(20 hour rate) |
-15°C(5°F) |
65% |
|
|
Self-Discharge |
Capacity after 3 month storage |
91% |
|
|
|
|
Capacity after 6 month storage |
82% |
|
at 25°C(77°F) |
Capacity after 12 month storage |
64% |
|
|
Charge |
Cycle |
Initial Charging Currentless than 3.60A Voltage14.40-15.00 V |
|
|
(constantvoltage) |
Float |
Voltage 13.50-13.80V |
|
|
Terminal |
T2,T3 |
||
Cycle Use
Portable VTR/TV, tape recorders, radio, etc.
Power tools, lawn mowers, vacuum cleaners
Cameras and photographic equipment
Portable personal computers, word processors, portable terminals, etc.
Portable measuring equipment
Portable telephone sets
Various power toys and hobby equipment
Lighting equipment
Standby Use
Communications and electric equipment
Emergency lighting equipment
Fire alarm and security systems
Various telemeter equipment
Office computers, microcomputers, and other office automation equipment
Robots, control equipment, and other factory automation equipment
UPS power supply
Emergency power supply in power generation plants and substation
Details:
1.Battery containers: ABS new plastic for battery containers which is more stronger and heatproof features.
2.Plates: Electrolytic purity lead 99.994%-99.996% , alloy of high quality Calcium be used.
3. Separators: High quality AGM are used for strongly heatproof.
4. Warranty: 12 months
5. Matrix brand can be made as customer's requested.
6. Certificate: CE certificate , ISO certificate
7. With competitive prices, excellent quality and on-time delivery, our maintenance free battery under our brand of matrix brands are exported to more than 30 countries and regions and selling at local market. We have gained a very popular reputation for reliable quality.
8. Warmly welcome your enquiry any time.
Assembling line
We're genuine factories can well control the quality, production cost and delivery time.
Normally we can delivery the products within 15-20days. For some hot models such as 6v 4ah,12V 7AH,12V 12AH,12V 17AH, 12v 100ah , we have stock in warehouse.
