| Categories | UPS battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP17 -12 |
| color | black |
| Business Type | Factory |
| Certificate | ISO9001,CE,IEC,MSDS |
| Brand | Matrix |

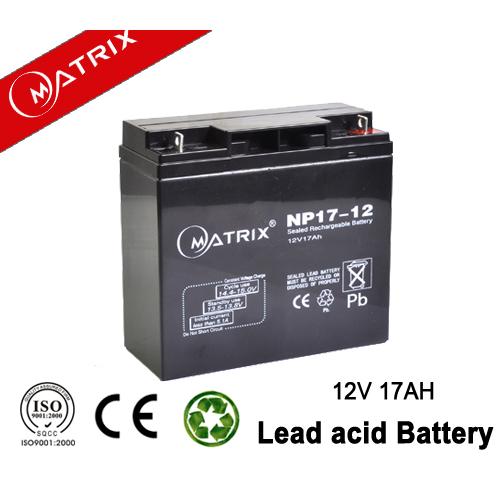

| Name | 12V 17AH Battery |
| Feature | no memory effect |
| Protection | Explosion Proof |
| case | abs |
| Sample: | free |
| self discharge | low |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | NP17 -12.xlsx |
| Update Time | 12-18-2015 |
Specification:
Nominal Voltage:12V
Rated capacity(20 hour rate):17AH
Dimensions
Length:181±1mm(7.13 inches)
Width:77±1mm(3.03inches)
Height:166±1mm(6.57inches)
Total Height:166±1mm(6.57inches)
Weight Approx:5.20Kg(11.46 lbs)
|
Capacity 25°C(77°F) |
20 hour rate(0.85A, 10.50V) |
17.0AH |
||
|
10 hour rate(1.56A, 10.50V) |
15.6AH |
|||
|
5 hour rate(2.89A, 10.50V) |
14.45AH |
|||
|
1 hour rate(10,2A, 9.60V) |
10.2AH |
|||
|
Internal Resistance |
Full charged Battery at 25 °C (77°F) |
17mΩ |
||
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) |
102% |
||
|
25°C(77°F) |
100% |
|||
|
0°C(32°F) |
85% |
|||
|
-15°C(5°F) |
65% |
|||
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage |
91% |
||
|
Capacity after 6 month storage |
82% |
|||
|
Capacity after 12 month storage |
64% |
|||
|
Charge (constant voltage) |
Cycle |
Initial Charging Currentless than 5.10A Voltage14.40-15.00 V |
||
|
Float |
Voltage 13.50-13.80V |
|||
|
Terminal |
T3,T13 |
|||
General Features:
1)Extremely safe and stable chemistry
2)Non-spillable construction design
3)ABS containers and covers optional
4)safty valve installation of explosion proof
5)high quality and high realiability
6)exceptional deep discharge recovery performance
7)low shelf discharge characteristics
8)flexible design for multiple installation positions
Applications:
♦Telephone switchboards, electric equipments, medical equipments, medical instruments and meters
♦Computers and uninterrupted power source (UPS)
♦ower transmission and transformer station, switch control and accident lighting
♦ Fire fighting, safety device and alarm monitoring
♦Aviation, spaceflight and power storage
♦Automatic office system
♦ Radio communication
♦ Emrgency lighting and car and ship starting system
♦Portable electric appliances and mining system
♦Traffic and navigation signal lamp

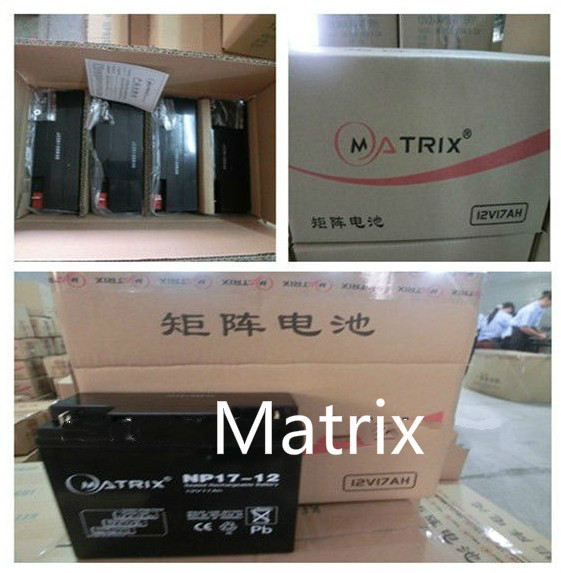

Packing
