| Categories | UPS battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP24 -12 |
| Color | black |
| Brand | Matrix |
| Certificate | CE,ISO9001,IEC,MSDS |
| Life span | 3-5year |

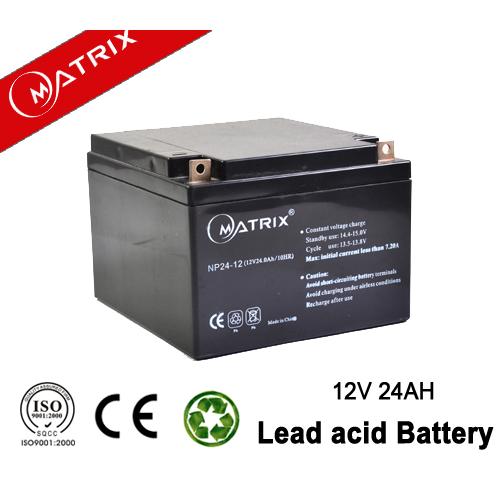

| Name | 12V 24AH sealed Lead Acid Battery |
| Terminal | T32 |
| Feature | high capacity |
| rechargeable | yes |
| Sample: | available |
| case | abs |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | NP24 -12.xlsx |
| Update Time | 12-18-2015 |
DC Rechargeable 12V 24AH UPS Battery with CE ISO
| Nominal Voltage | 12V | |
| Rated capacity(20 hour rate) | 24AH | |
| Dimensions | Length | 166±1mm(6.54 inches) |
| Width | 125±1mm(4.92inches) | |
| Height | 175±1mm(6.89inches) | |
| Total Height | 175±1mm(6.89inches) | |
| Weight Approx | 7.70Kg(16.98lbs) | |
Characteristic:
|
Capacity 25°C |
20 hour rate(1.20A, 10.50V) |
24.00AH |
||
|
10 hour rate(2.29A, 10.50V) |
22.90AH |
|||
|
5 hour rate(4.08A, 10.50V) |
20.40AH |
|||
|
1 hour rate(15.07A, 9.60V) |
15.07AH |
|||
|
Internal Resistance |
Full charged Battery |
12mΩ |
||
|
capacity affected by temperature |
40°C(104°F) |
102% |
||
|
25°C(77°F) |
100% |
|||
|
0°C(32°F) |
85% |
|||
|
-15°C(5°F) |
65% |
|||
|
Self-Discharge |
Capacity after 3 month storage |
91% |
||
|
Capacity after 6 month storage |
82% |
|||
|
Capacity after 12 month storage |
64% |
|||
|
Charge |
Cycle |
Initial Charging Currentless than 9.60A Voltage14.10-14.40 V |
||
|
Float |
Voltage 13.50-13.80V |
|||
|
Terminal |
T32 |
|||
Applications:
1.Telephone switchboards, electric equipments, medical equipments, medical instruments and meters
2.Computers and uninterrupted power source (UPS)
3.Power transmission and transformer station, switch control and accident lighting
4.Fire fighting, safety device and alarm monitoring
5.Aviation, spaceflight and power storage
6.Automatic office system
7.Radio communication system
8.Emergency lighting and car and ship starting system
9.Portable electric appliances and mining system
