| Categories | UPS battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP12 -12 |
| color | black |
| certificate | ISO9001,CE,IEC,MSDS |
| Business Type | factory |
| Life span | 3-5years |
| Brand | Matrix |
| Type | battery factory / manufacturer |
| More | |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | NP12 -12.xlsx |
| Update Time | 12-18-2015 |
Application:
Widely used in:
1.Fire protection ,security uninterruptible power supply, backup power supply
2.UPS systems for bank
3.Emergency lighting or small lamp fitting
4.Electric power system
5.Security system
6.electric bicycle, motorcycle,scooter
Features
1.Low self discharge: lower than 3% of rated capacity per month under normal operating temperature.
2.ABS case (can be made with flame retardant V0)
3.No memory effect after repetitious usage or discharges
4.Maintenance-free operation
5.Sealed construction and leak proof
6.Safety valve regulated system
7.Operating in any position
8.Deep discharge recovery
9.Wide operating temperature range
Descripitions:
|
Nominal Voltage |
12V |
||
|
Rated capacity(20 hour rate) |
12AH |
||
|
Dimensions |
Length |
151±1mm(5.94 inches) |
|
|
Width |
98±1mm(3.86inches) |
||
|
Height |
96±1mm(3.74inches) |
||
|
Total Height |
101±1mm(3.98 inches) |
||
|
Weight Approx |
3.40Kg(7.50lbs) |
||
|
Capacity 25°C(77°F) |
20 hour rate(0.60A, 10.50V) |
12.00AH |
|
|
10 hour rate(1.10A, 10.50V) |
11.00AH |
||
|
5 hour rate(2.04A, 10.50V) |
10.20AH |
||
|
1 hour rate(7.20A, 9.60V) |
7.20AH |
||
|
Internal Resistance |
Full charged Battery at 25 °C (77°F) |
16mΩ |
|
|
Capacity affected by temperature |
40°C(104°F) |
102% |
|
|
25°C(77°F) |
100% |
||
|
0°C(32°F) |
85% |
||
|
-15°C(5°F) |
65% |
||
|
Self-Discharge |
Capacity after 3 month storage |
91% |
|
|
Capacity after 6 month storage |
82% |
||
|
Capacity after 12 month storage |
64% |
||
|
Charge |
Cycle |
Initial Charging Currentless than 3.60A Voltage14.40-15.00 V |
|
|
Float |
Voltage 13.50-13.80V |
||
|
Terminal |
T2,T3 |
||

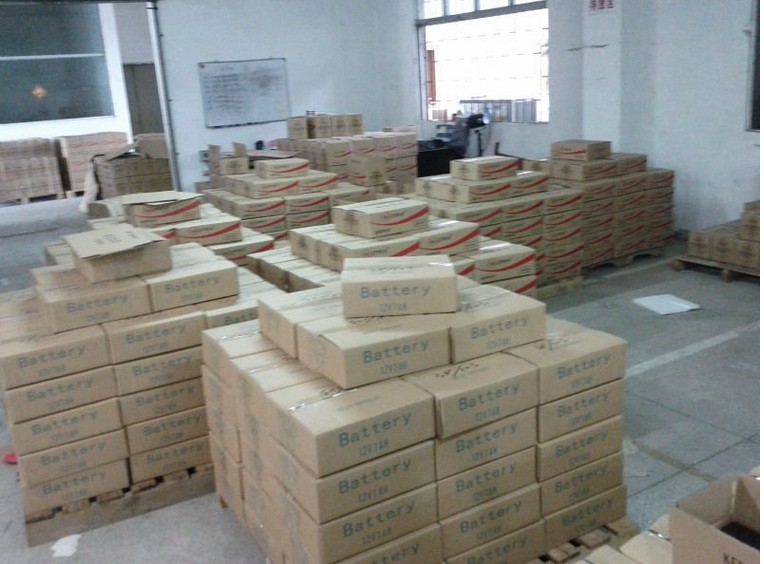

Package:
PP package, 1pc/box, 6pcs/carton
Certificates:
