| Categories | UPS battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP80-12 |
| color· | black |
| case | abs |
| Type: | lead acid batteries |
| Terminal: | T10 |

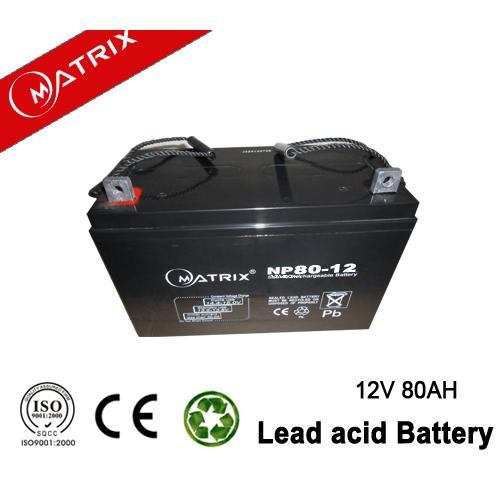

| name | 12v 80AH UPS Battery |
| Feature | high capacity |
| self discharge | low |
| oem | available |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | Western Union,T/T |
| Download DOC | NP80-12.xlsx |
| Update Time | 12-18-2015 |
Main Features 12v 80ah battery
1:Maintenance free
2:High power to weight ratio
3:No memory effect
4:Sealed construction and leak proof
5:High discharge rate
6:Wide operation temperature range
7:Deep discharging recovery
8:Low self discharge and longer service life span.
9:Safety valve regulated system
10:CE,MSDS,ISO9001 certificate
Applications of 12v 80ah battery:
1:Electric power system
2:Emergency lighting and car and ship starting system
3:Power transmission and transformer station, switch control
4:Computers and uninterrupted power source (UPS)
5:Telephone and telecommunication equipment
6:Electronic appliance and other backup power supply
7:Fire fighting, safety device and alarm monitoring
8:Aviation, spaceflight and power storage
|
Nominal Voltage |
12V |
|
|
Rated capacity(20hour rate) |
80AH |
|
|
Dimensions |
Length |
331±1mm(13.03inches) |
|
Width |
175±1mm(6.89inches) |
|
|
Height |
216±1mm(8.50inches) |
|
|
TotalHeight |
220±1mm(8.66inches) |
|
|
Weight Approx |
29Kg(67.34lbs |
|
|
Capacity 25°C |
10 hour rate(10.00A, 10.80V) |
80.00AH |
|
|
5 hour rate(16.00A, 10.50V) |
75.00AH |
||
|
1 hour rate(60.00A, 9.60V) |
60.00AH |
||
|
Internal Resistance |
Full charged Battery |
4.5mΩ |
|
|
at 25 °C (77°F) |
|||
|
Capacity affected bytemperature |
40°C(104°F) |
102% |
|
|
(20 hour rate) |
25°C(77°F) |
100% |
|
|
|
0°C(32°F) |
85% |
|
|
|
-15°C(5°F) |
65% |
|
|
Self-Discharge |
Capacity after 3 month storage |
91% |
|
|
at 25°C(77°F) |
Capacity after 6 month storage |
82% |
|
|
|
Capacity after 12 month storage |
64% |
|
|
Charge |
Cycle |
Initial Charging Currentless than 30.00A Voltage14.40-15.00 V |
|
|
(constantvoltage) |
Float |
Voltage 13.50-13.80V |
|
|
Terminal |
T10 |
||
