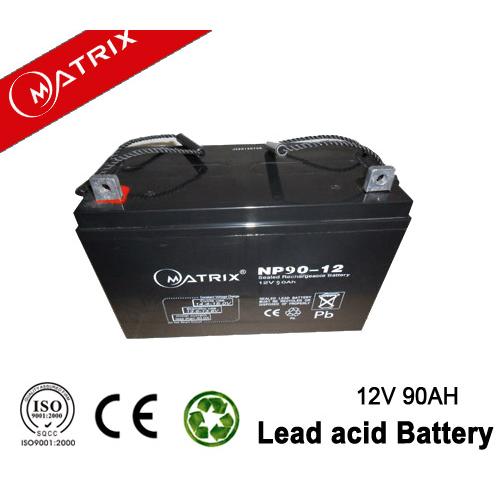

Detail Specifications of 12v 90ah ups battery:
Main Features 12v 90ah battery
1:Maintenance free
2:High power to weight ratio
3:No memory effect
4:Sealed construction and leak proof
5:High discharge rate
6:Wide operation temperature range
7:Deep discharging recovery
8:Low self discharge and longer service life span.
9:Safety valve regulated system
10:CE certificate
Applications of 12v 90ah battery:
1:Electric power system
2:Emergency lighting and car and ship starting system
3:Power transmission and transformer station, switch control
4:Computers and uninterrupted power source (UPS)
5:Telephone and telecommunication equipment
6:Electronic appliance and other backup power supply
7:Fire fighting, safety device and alarm monitoring
8:Aviation, spaceflight and power storage
Technique Specifications of 12v 90ah :
| Nominal Voltage | 12V | |
| Rated capacity(20 hour rate) | 90AH | |
| Dimensions | Length | 331±1mm(13.03 inches) |
| Width | 175±1mm(6.89inches) | |
| Height | 216±1mm(8.50inches) | |
| Total Height | 220±1mm(8.66 inches) | |
| Weight Approx | 29Kg(67.34lbs) | |
Characteristic of 12v 90ah Battery:
| Capacity 25°C | 10 hour rate(10.00A, 10.80V) | 90.00AH | |
| 5 hour rate(16.00A, 10.50V) | 80.00AH | ||
| 1 hour rate(60.00A, 9.60V) | 60.00AH | ||
| Internal Resistance |
Full charged Battery at 25 °C (77°F) |
4.5mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle | Initial Charging Currentless than 30.00A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | T10 | ||
