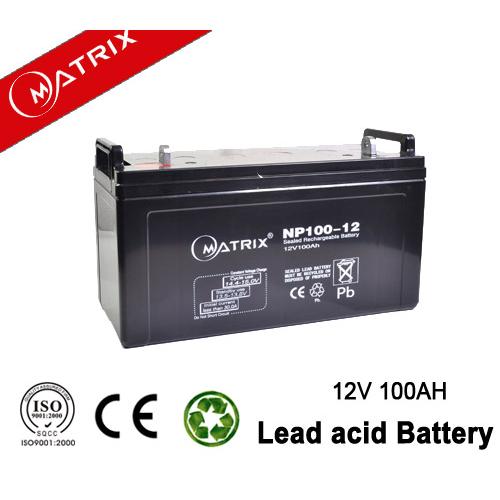

Maintenance free 12V 100AH UPS Battery replacement
Specification
Nominal Voltage:12V
Rated capacity(10 hour rate):100AH
Dimensions
  Length:407±1mm(16.02inches)
  Width: 235±1mm(9.25inches)
  Height:207±1mm(8.15inches)
  Total Height:236±1mm(9.29inches)

Application
UPS(uninterruptiblepower supply)
Emergency Power Supply
Safety and Security system

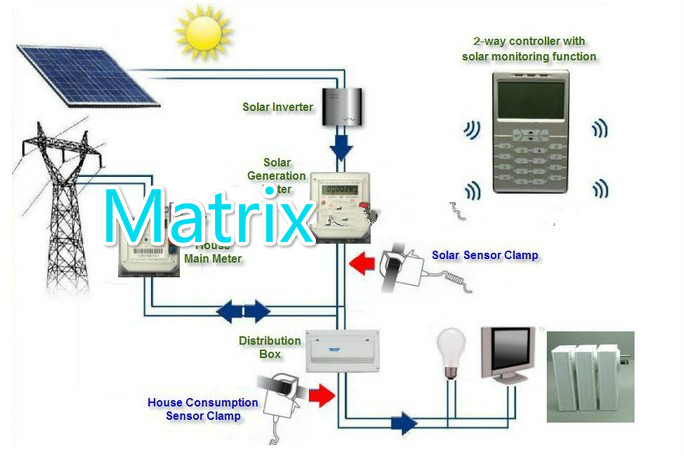

Solar Power system
Lighting products
Portable Power Supply
Parking Lock
Electronic Scale
Traffic Sign Light


	Main Features :













	1:Maintenance free



	2:High power to weight ratio



	3:No memory effect



	4:Sealed construction and leak proof



	5:High discharge rate



	6:Wide operation temperature range



	7:Deep discharging recovery



	8:Low self discharge and longer service life span.



	9:Safety valve regulated system

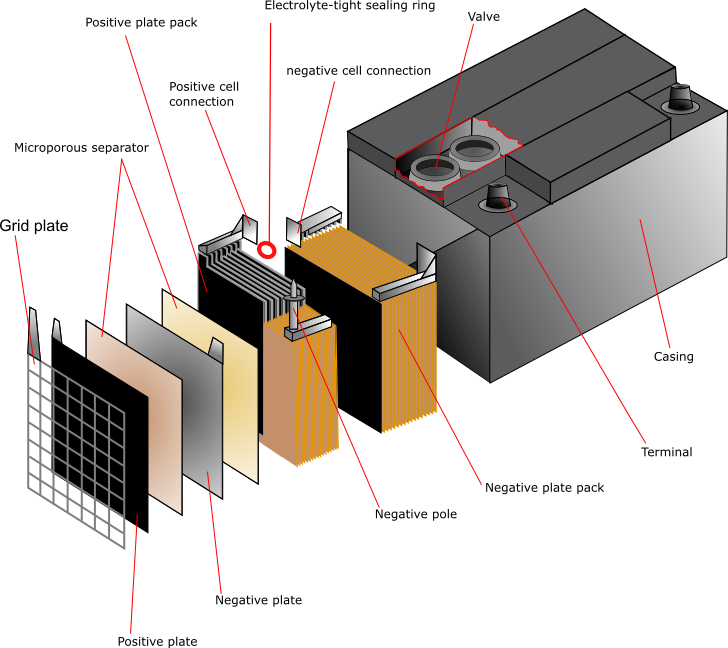

Construction
Component ......Raw material
Positive........Lead dioxide
Negative........Lead
Container ........ABS
Cover........ABS
Sealant ........Epoxy
Safety valve ....Rubber
Terminal ........Copper/Pb
Separator ........Fiber glass
Electrolyte .......Sulfuric acid

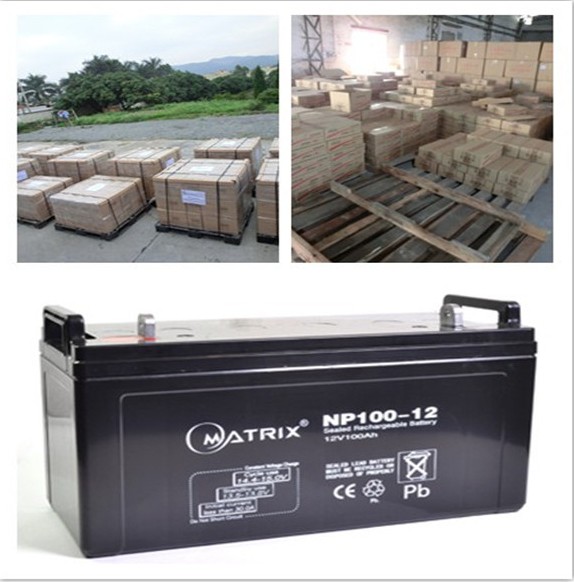

Packing

	Mostly using application:
