| Categories | Lighting battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP4.0-6 |
| capacity: | Matrix |
| Terminal: | T1 |
| Type: | sealed lead acid |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | NP4.0-6.doc NP4.0-6.xlsx |
| Update Time | 12-21-2015 |

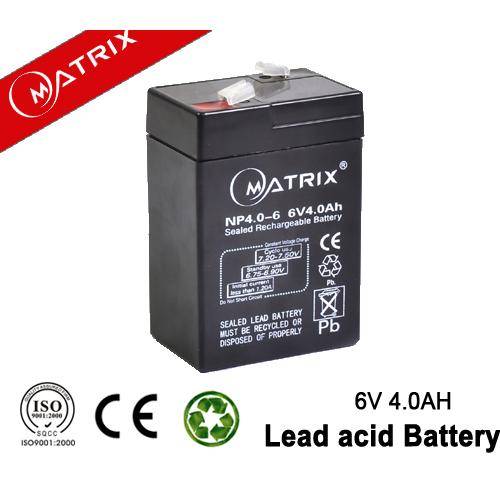

Lead Acid 6V 4AH emergency light batteries with T1 Terminal
General features:
1)sealed and maintenance free operation
2)Non-spillable construction design
3)ABS containers and covers optional
4)safty valve installation of explosion proof
5)high quality and high realiability
6)exceptional deep discharge recovery performance
7)low shelf discharge characteristics
8)flexible design for multiple installation positions
Main application:
UPS stystem
Jump start
security system
Telecommunication equipment
Electric tools
Battery powered wheelchairs
Golf trolley,battery powered lawn mower
Portable television and video equipment
Portable measuring and medical electronic instruments
Lighting system,emergency lighting , sport light and camping lantern.
Power station and telecom station
Communication and telecom equipment
UPS / EPS power supply
Fire alarm and security devices
Specification:
Nominal Voltage: 6V
Rated capacity(20 hour rate):4.0AH
Dimensions
Length:70±1mm(2.76inches)
Width:48±1mm(1.89inches)
Height:101±1mm(3.98inches)
Total Height:107±1mm(4.21inches)
| Capacity 25°C(77°F) | 20 hour rate(0.20A, 5.25V) | 4.00AH | |
| 10 hour rate(0.37A, 5.25V) | 3.70AH | ||
| 5 hour rate(0.68A, 5.25V) | 3.40AH | ||
| 1 hour rate(2.40A, 4.80V) | 2.40AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) | 25mΩ | |
| Capacity affected by temperature (20 hour rate) | 40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25°C(77°F) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Charge (constant voltage) | Cycle | Initial Charging Current less than 1.20A Voltage Charge 7.20~7.50V | |
| Float | |||
| Terminal | T1 | ||

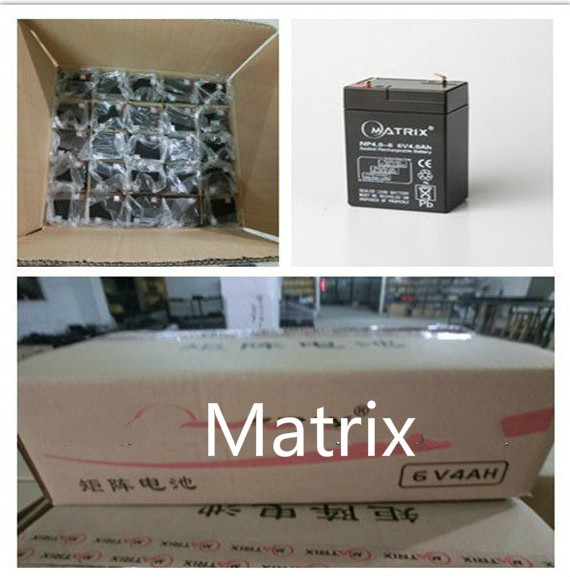

Packing:
| MODEL | VOLTAGE | CAPACITY | DIMENSIONS | TERMINAL | ||||||||
| LENGTH | WIDTH | HEIGHT | TOTAL HEIGHT | TYPE | PLACE | |||||||
| (V) | (Ah) | mm | inch | mm | inch | mm | inch | mm | inch | |||
| NP0.4-6 | 6 | 0.4 | 57 | 2.24 | 14 | 0.55 | 51 | 2.01 | 51 | 2.01 | PLUG | G |
| NP1-6 | 6 | 1 | 51 | 2.01 | 42 | 1.65 | 51 | 2.01 | 57 | 2.24 | T1 | A |
| NP1.2-6 | 6 | 1.2 | 97 | 3.82 | 24 | 0.94 | 52 | 2.05 | 58 | 2.28 | T1 | C |
| NP2-6 | 6 | 2 | 43 | 1.69 | 37 | 1.46 | 76 | 2.99 | 76 | 2.99 | TAB | L |
| NP2.8-6 | 6 | 2.8 | 66 | 2.60 | 33 | 1.30 | 97 | 3.82 | 104 | 4.09 | T1 | A |
| NP2.8-6A | 6 | 2.8 | 66 | 2.60 | 33 | 1.30 | 100 | 3.94 | 106 | 4.17 | T1 | A |
| NP3.2-6 | 6 | 3.2 | 134 | 5.28 | 35 | 1.38 | 61 | 2.40 | 67 | 2.64 | T1 | C |
| NP3.2-6A | 6 | 3.2 | 67 | 2.64 | 34 | 1.34 | 118 | 4.65 | 124 | 4.88 | T1 | A |
| NP3.2-6B | 6 | 3.2 | 125 | 4.92 | 33 | 1.30 | 61 | 2.40 | 67 | 2.64 | T1 | C |
| NP3.5-6 | 6 | 3.5 | 194 | 7.64 | 25 | 0.98 | 50 | 1.97 | 56 | 2.20 | T1 | C |
| NP4-6 | 6 | 4 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | T1 | A |
| NP4.5-6 | 6 | 4.5 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | T1 | A |
| NP5-6 | 6 | 5 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | T1 | A |
| NP6.5-6 | 6 | 6.5 | 85 | 3.35 | 47 | 1.85 | 101 | 3.98 | 107 | 4.21 | T1 | A |
| NP4-6A | 6 | 4 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 106 | 4.17 | TAB | A |
| NP4.5-6A | 6 | 4.5 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 106 | 4.17 | TAB | A |
| NP4-6B | 6 | 4 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 103 | 4.06 | T1 | A |
| NP4.5-6B | 6 | 4.5 | 70 | 2.76 | 47 | 1.85 | 101 | 3.98 | 103 | 4.06 | T1 | A |
| NP3.6-6WA | 6 | 3.6 | 39 | 1.54 | 39 | 1.54 | 150 | 5.91 | 150 | 5.91 | PLUG | / |
| NP4-6WB | 6 | 4 | 194 | 7.64 | 25 | 0.98 | 62 | 2.44 | 62 | 2.44 | PLUG | / |
| NP4.9-6 | 6 | 4.9 | 242 | 9.53 | 35 | 1.38 | 47 | 1.85 | 47 | 1.85 | PLUG | N |
| NP5-6A | 6 | 5 | 170 | 6.69 | 35 | 1.38 | 70 | 2.76 | 76 | 2.99 | T1 | C |
| NP6-6S | 6 | 6 | 85 | 3.35 | 48 | 1.89 | 100 | 3.94 | 106 | 4.17 | T1 | A |
| NP7-6 | 6 | 7 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1/T2 | C |
| NP7.2-6 | 6 | 7.2 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1/T2 | C |
| NP7.5-6 | 6 | 7.5 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1/T2 | C |
| NP7.8-6 | 6 | 7.8 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1/T2 | C |
| NP8.5-6 | 6 | 8.5 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1/T2 | C |
| NP9-6 | 6 | 9 | 151 | 5.94 | 34 | 1.34 | 94 | 3.70 | 100 | 3.94 | T1/T2 | C |
| NP8-6 | 6 | 8 | 98 | 3.86 | 56 | 2.20 | 117 | 4.61 | 119 | 4.69 | T1 | B |
| NP10-6 | 6 | 10 | 151 | 5.94 | 50 | 1.97 | 94 | 3.70 | 100 | 3.94 | T1/T2 | C |
| NP12-6 | 6 | 12 | 151 | 5.94 | 50 | 1.97 | 94 | 3.70 | 100 | 3.94 | T1/T2 | C |
| NP14-6 | 6 | 14 | 108 | 4.25 | 71 | 2.80 | 140 | 5.51 | 140 | 5.51 | T2/-T1 | / |
| NP20-6 | 6 | 20 | 157 | 6.18 | 83 | 3.27 | 125 | 4.92 | 130 | 5.12 | T3 | C |
| NP36-6 | 6 | 36 | 161 | 6.34 | 87 | 3.43 | 163 | 6.42 | 169 | 6.65 | T2/T3 | C |
| NP60-6 | 6 | 60 | 185 | 7.28 | 112 | 4.41 | 205 | 8.07 | 205 | 8.07 | T2/T3 | C |
| NP100-6 | 6 | 100 | 195 | 7.68 | 170 | 6.69 | 206.5 | 8.13 | 212.5 | 8.37 | T6 | / |
| NP120-6 | 6 | 120 | 280 | 11.02 | 128 | 5.04 | 203 | 7.99 | 203 | 7.99 | T6 | C |
| NP150-6 | 6 | 150 | 260 | 10.24 | 180 | 7.09 | 247 | 9.72 | 253 | 9.96 | T7 | / |
| NP200-6 | 6 | 200 | 306 | 12.00 | 168 | 6.61 | 222 | 8.74 | 228 | 8.98 | T8 | C |
