Mf  VRLE Emergency Lighting Battery 6V 10AH  factory

Specification：

Nominal Voltage: 6V

Rated capacity(20 hour rate):10AH

Dimensions

Length:151±1mm(5.94inches)

Width:51±1mm(2.0inches)

Height:96±1mm(3.78inches）

Total Height:100±1mm(3.94inches)

Application:

UPS(uninterruptible power supply)

Emergency Power Supply

Safety and Security system

Solar Power system

Lighting products

Portable Power Supply

Parking Lock

Electronic Scale

Traffic Sign Light

	Character


















				Capacity 25°C(77°F)




				20 hour rate(0.50A, 5.25V)




				10.00AH









				10 hour rate(0.95A, 5.25V)




				9.50AH









				5 hour rate(1.70A, 5.25V)




				8.50AH









				1 hour rate(6.28A, 4.80V)




				6.28AH









				Internal Resistance




				Full charged Battery at 25 °C (77°F)




				12mΩ









				capacity affected by temperature(20 hour rate)




				40°C(104°F)




				102%









				25°C(77°F)




				100%









				0°C(32°F)




				85%









				-15°C(5°F)




				65%









				Self-Discharge at 25 °C (77°F)




				Capacity after 3 month storage




				91%









				Capacity after 6 month storage




				82%









				Capacity after 12 month storage




				64%









				Charge (constant voltage)




				Cycle




				Initial Charging Current less than 3.00 A
Voltage Charge 7.20~7.50V









				Float




				Voltage 6.75~6.90V









				Terminal




				T1 OR T2






Features:

Low self discharge: lower than 3% of rated capacity per month under normal operating temperature

ABS case (can be made with flame retardant V0)

No memory effect after repetitious usage or discharges

Maintenance-free operation

Sealed construction and leak proof

Safety valve regulated system

Operating in any position

Deep discharge recovery

Wide operating temperature range

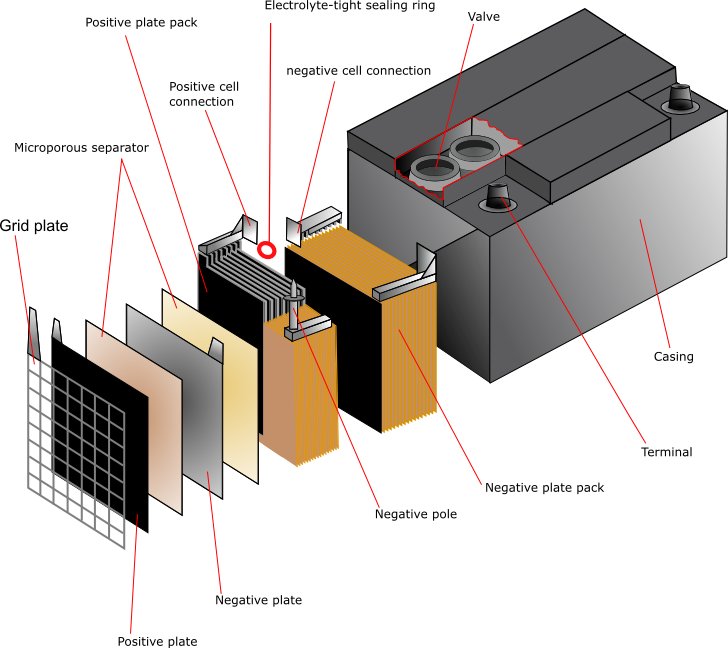

Contruction



Other Hot model!!!

12V 7AH , 12V 12AH, 12V 17AH, 12V 24AH, 12V 38AH, 12V 65AH, 12V 100AH, 12V 120AH, 12V 150AH,12V 200AH
