| Categories | Lighting battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP4.5-6 |
| Battery brand | Matrix |
| Usage | Emergency Lighting,rechargeable battery, |
| battery type: | agm vrla |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | NP4.5-6.doc NP4.5-6.xlsx |
| Update Time | 12-21-2015 |

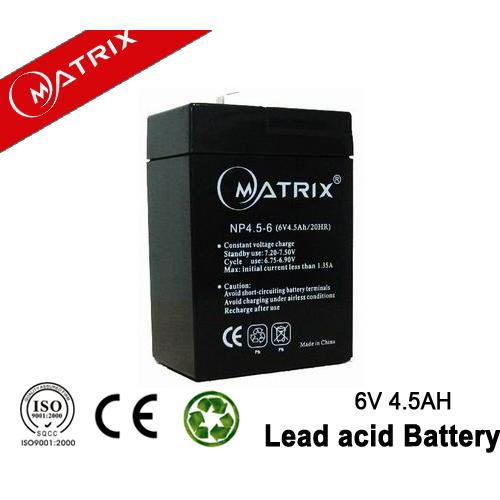

Valve regulated lead acid battery 6V 4.5Ah lighting battery
Detail Specifications:
* Model: NP4.5-6 lead acid sealed battery
* Nominal Voltage: 6V lead acid sealed battery
* Rated Capacity: 4.5Ah(20Hr)
* Dimension: 70*47*101mm
* Approx Weight: 0.75Kg/pcs

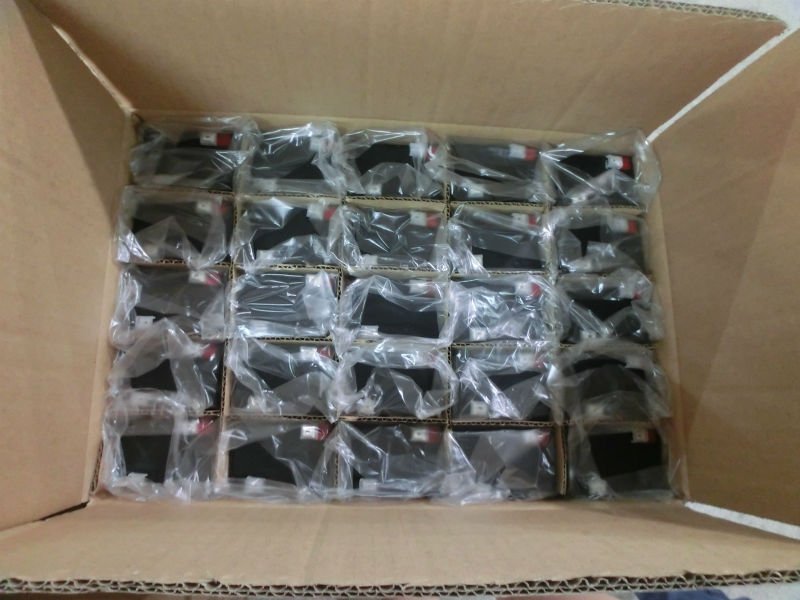

* Packing Detail: 25PCS/CTN
* Loading Quantities: 20'FT=28000PCS
Main Feature:
1.Low self discharge: lower than 3% of rated capacity per month under normaloperating temperature
2.ABS case (can be made with flame retardant V0)
3.No memory effect after repetitious usage or discharges
4.Maintenance-free operation
5.Sealed construction and leak proof
6.Safety valve regulated system
7.Operating in any position
8.Deep discharge recovery
9.Wide operating temperature range
Applications:
1.Power transmission and transformer station, switch control
2.Fire fighting, safety device and alarm monitoring
3.Aviation, spaceflight and power storage
4.Automatic office system
5.Radio communication system
6.Emergency lighting and car and ship starting system
7.Portable electric appliances and mining system
Our advantages :
1.Competitive prices with reliable quality.
2.Adopting high quality PP plastic for battery case, stronger and heatproof.
3.Plates made of high purity lead 99.994-99.996% dry charged battery
4.High quality AGM separator, pure acid
|
Capacity 25°C(77°F) |
20 hour rate(0.20A, 5.25V) |
4.50AH |
|
|
|
10 hour rate(0.37A, 5.25V) |
3.70AH |
|
|
|
5 hour rate(0.68A, 5.25V) |
3.40AH |
|
|
|
1 hour rate(2.40A, 4.80V) |
2.40AH |
|
|
Internal Resistance |
Full charged Battery |
25mΩ |
|
|
|
at 25 °C (77°F) |
|
|
|
Capacity affected by temperature |
40°C(104°F) |
102% |
|
|
(20 hour rate) |
25°C(77°F) |
100% |
|
|
|
0°C(32°F) |
85% |
|
|
|
-15°C(5°F) |
65% |
|
|
Self-Discharge |
Capacity after 3 month storage |
91% |
|
|
at 25°C(77°F) |
Capacity after 6 month storage |
82% |
|
|
|
Capacity after 12 month storage |
64% |
|
|
Charge |
Cycle |
Initial Charging Current less than 1.20A |
|
|
(constant voltage) |
|
Voltage Charge 7.20~7.50V |
|
|
|
Float |
|
|
|
Terminal |
T1 |
||
Packing
