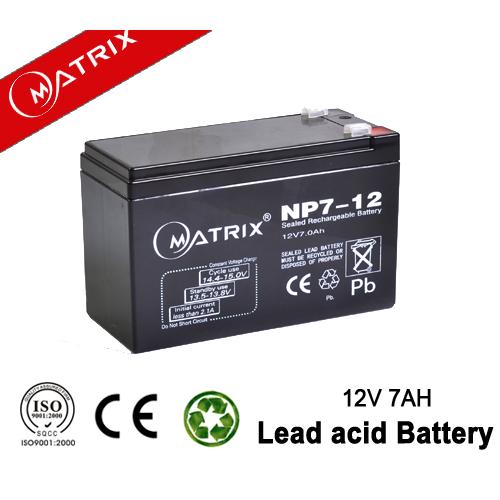

MF 12V 7ah led Lighting Battery manufacturer
Specification ：
Nominal Voltage:12V
Rated capacity(20 hour rate):7AH
Dimensions
Length:151±1mm(9.02inches)
Width:65±1mm(5.43inches)Height：94±1mm(8.19inches)
Total Height：100±1mm(8.30inches)Weight Approx：2.05Kg(4.52bs)
Applications:
♦Telephone switchboards, electric equipments, medical equipments, medical instruments and meters
♦Computers and uninterrupted power source (UPS)
♦ower transmission and transformer station, switch control and accident lighting
♦ Fire fighting, safety device and alarm monitoring
♦Aviation, spaceflight and power storage
♦Automatic office system
♦ Radio communication
♦ Emrgency lighting and car and ship starting system
♦Portable electric appliances and mining system
♦Traffic and navigation signal lamp
| Capacity 25°C(77°F) | 20 hour rate(0.35A, 10.50V) | 7.00AH | |
| 10 hour rate(0.66A, 10.50V) | 6.60AH | ||
| 5 hour rate(1.20A, 10.50V) | 6.00AH | ||
| 1 hour rate(4.55A, 9.60V) | 4.55AH | ||
| Internal Resistance | Full charged Battery at 25 °C (77°F) | 25mΩ | |
| Capacity affected by temperature (20 hour rate) | 40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25°C(77°F) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
| Charge (constant voltage) | Cycle | Initial Charging Currentless than 2.10A Voltage14.40-15.00V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | T1-187,T2-250 | ||
Notice:
Don’t near the hot source and don’t under the sunshine.
Don’t charge in the sealed container.
No short circuit. It should be addition charge if you don’t use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
Don’t store in the space of acid gas.
You should be careful and regular check when use the battery. To avoid the battery don’t work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
Don’t put the battery in the fire, or it will explode.
Please use cotton cloth to clean, if the battery is broken down and leak electrolyte. Please wash your skin when touch the electrolyte.
Advantage:
1.The battery is full of power when it’s out of factory, no need to add liquid to charge;
2.No memory, no need to discharge battery to use, suitable for circuit design;
3.Use high class separator plate, adsorption function is very strong;
4.There is no flowing liquid (poor liquid), does not leak acid and free Upside down,
5.Comply with environmental requirements, ease of use,
6.The use of lead-calcium alloys, battery self-discharge is very low,
7.Easy storage, less maintenance;
8.Using ABS plastic shell and valve technology for safe use.
