| Categories | Solar battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP38-12 |
| case | abs |
| Battery brand | Matrix |
| Type | lead acid batteries |
| separater | Agm |
| High capacity | yes |
| oem | avaliable |
| FOB port | shenzhen |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | |
| Update Time | 12-18-2015 |

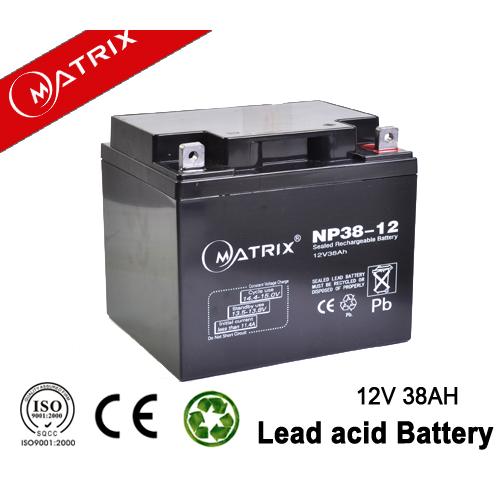

12V 38AH solar power battery deep cycle
Applications:
Primary Competitive Advantages:
Battery features:
- Maintenance free
- High power to weight ratio
- No memory effect
- Low self discharge
- CE certificate
- Long service life
- High discharge rate
- Wide operating temperature range
Specification :
| Nominal Voltage | 12V | |
| Rated capacity(20 hour rate) | 38AH | |
| Dimensions | Length | 197±1mm(7.76inches) |
| Width | 166±1mm(6.50inches) | |
| Height | 170±1mm(6.69inches) | |
| Total Height | 170±1mm(6.69inches) | |
| Weight Approx |
12.0Kg(27.56lbs) |
|
Characteristic :
| Capacity 25°C | 10 hour rate(3.80A, 10.80V) | 38.00AH | |
| 5 hour rate(6.56A, 10.50V) | 32.80AH | ||
| 1 hour rate(24.30A, 9.60V) | 24.30AH | ||
| Internal Resistance |
Full charged Battery at 25 °C (77°F) |
9.7mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
| Self-Discharge at 25 °C (77°F) | Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle | Initial Charging Currentless than 11.40A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | T32 | ||
