Detail Specifications of 12v 90ah lead acid battery:

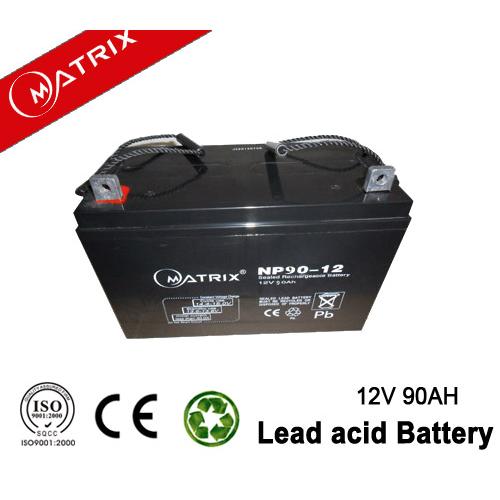

* Model: NP90-12 12V lead acid battery

* Nominal Voltage: 12V lead acid battery

* Rated Capacity: 90Ah(20Hr)

* Dimension: 331(L)*175(W)*216(H)mm

* Approx Weight: 29KG/pcs 12V lead acid battery

* Packing Detail: 1pcs/CTN 12V lead acid battery

* Loading Quantities: 20'FT=600PCS

Nominal Voltage		12V
Rated capacity(20 hour rate)		90AH
Dimensions	Length	331±1mm(13.03 inches)
	Width	175±1mm(6.89inches)
	Height	216±1mm(8.50inches)
	Total Height	220±1mm(8.66 inches)
Weight Approx		29Kg(67.34lbs)

Characteristic

Capacity 25°C		10 hour rate(10.00A, 10.80V)	90.00AH
		5 hour rate(16.00A, 10.50V)	80.00AH
		1 hour rate(60.00A, 9.60V)	60.00AH
Internal Resistance		Full charged Battery  at 25 °C (77°F)	4.5mΩ
Capacity affected by temperature (20 hour rate)		40°C(104°F)	102%
		25°C(77°F)	100%
		0°C(32°F)	85%
		-15°C(5°F)	65%
Self-Discharge  at 25°C(77°F)		Capacity after 3 month storage	91%
		Capacity after 6 month storage	82%
		Capacity after 12 month storage	64%
Charge  (constant voltage)	Cycle	Initial Charging Currentless than 30.00A   Voltage14.40-15.00 V
	Float	Voltage 13.50-13.80V
Terminal		T10

Main Features 12v 90ah battery

1:Maintenance free

2:High power to weight ratio

3:No memory effect

4:Sealed construction and leak proof

5:High discharge rate

6:Wide operation temperature range

7:Deep discharging recovery

8:Low self discharge and longer service life span.

9:Safety valve regulated system

10:CE certificate

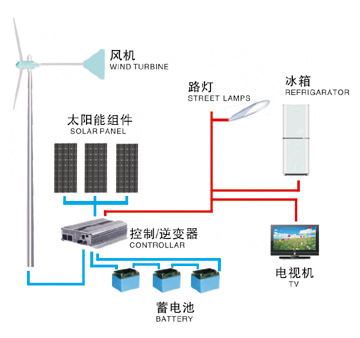

Applications of 12v 90ah battery:

1:Electric power system

2:Emergency lighting and car and ship starting system

3:Power transmission and transformer station, switch control

4:Computers and uninterrupted power source (UPS)

5:Telephone and telecommunication equipment

6:Electronic appliance and other backup power supply

7:Fire fighting, safety device and alarm monitoring

8:Aviation, spaceflight and power storage

Type :12v lead acid battery :

1.Standard:JIS/DIN Standard car battery

2.Material : high quality lead-stibonium alloy , AGM separator , pure sulphuric acid

add special Additive.

3. Super starting power and long life.

4.Warranty : 12 months

5.Applications:starting battery for cars,buses,and other vehivles.

6.Delivery:within 15 days after receiving deposit.

7.Packing:540pcs/cartons, with or without pallet.

8.OEM: customer's brands & packaging design/dimension for free

Our advantages of 12v 90ah lead acid battery :

1.Competitive prices with reliable quality.

2.Adopting high quality ABS plastic for battery case, stronger and heatproof.

3.Plates made of high purity lead 99.994-99.996% dry charged battery

4.High quality AGM separator, pure acid.
