| Categories | Solar battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP100 -12 |
| color | black |
| certificate | CE,ISO9001,IEC,MSDS |
| Business type | Factory |
| Brand | Matrix |
| Lead time | 15-20days |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | |
| Update Time | 12-18-2015 |

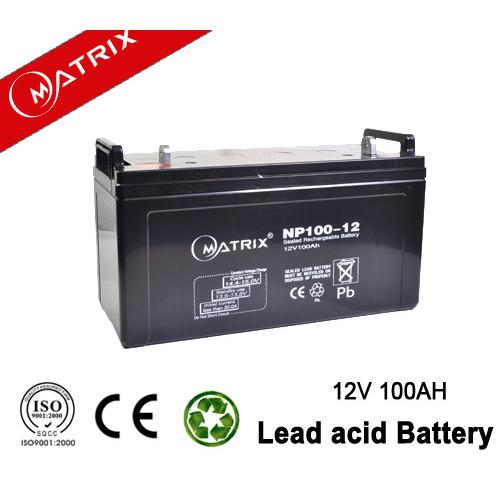

Long life 12V 100AH Lead Acid solar system batteries leak proof
Specification
|
Nominal |
12v |
|
Rated capacity(20 hour rate) |
100ah |
|
Length |
407±1mm |
|
Width |
173±1mm |
|
Height |
236±1mm |
|
Weight Approx |
31.5KG |
|
Capacity 25°C |
10 hour rate(10.00A, 10.80V) |
100.00AH |
|
|
|
5 hour rate(16.00A, 10.50V) |
80.00AH |
|
|
|
1 hour rate(60.00A, 9.60V) |
60.00AH |
|
|
Internal Resistance |
Full charged Battery at 25 °C (77°F) |
4.5mΩ |
|
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) |
102% |
|
|
|
25°C(77°F) |
100% |
|
|
|
0°C(32°F) |
85% |
|
|
|
-15°C(5°F) |
65% |
|
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage |
91% |
|
|
|
Capacity after 6 month storage |
82% |
|
|
|
Capacity after 12 month storage |
64% |
|
|
Charge (constant voltage) |
Cycle |
Initial Charging Currentless than 30.00A Voltage14.40-15.00 V |
|
|
|
Float |
Voltage 13.50-13.80V |
|
|
Terminal |
T10 |
||
Main Features 12v 100ah battery for solar system:
1:Maintenance free
2:High power to weight ratio
3:No memory effect
4:Sealed construction and leak proof
5:High discharge rate
6:Wide operation temperature range
7:Deep discharging recovery
8:Low self discharge and longer service life span.
9:Safety valve regulated system
Our advantages of 12v 100ah lead acid battery :
1.Competitive prices with reliable quality.
2.Adopting high quality ABS plastic for battery case, stronger and heatproof.
3.Plates made of high purity lead 99.994-99.996% dry charged battery
4.High quality AGM separator, pure acid.
ApplicationUPS(uninterruptiblepower supply)Emergency Power SupplySafety and Security systemSolar Power systemLighting productsPortable Power SupplyParking LockElectronic ScaleTraffic Sign Light

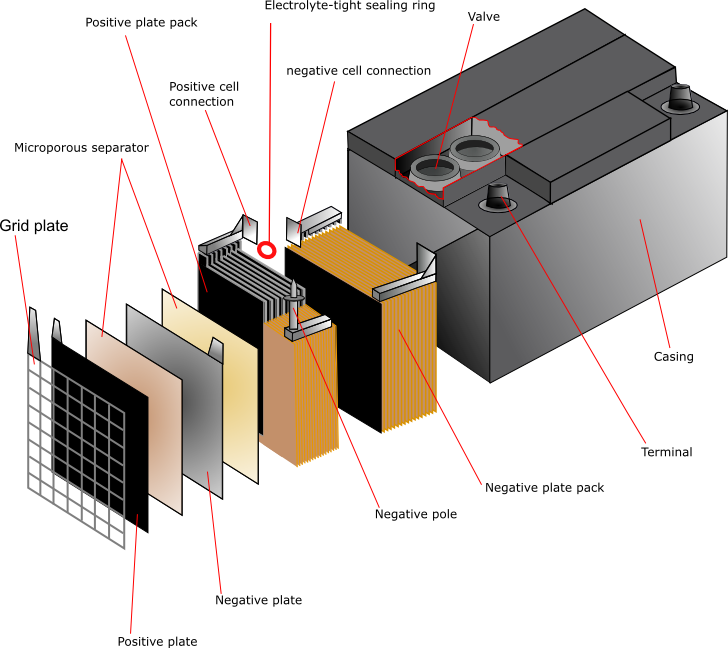

Construction
Component ......Raw material
Positive........Lead dioxide
Negative........Lead
Container ........ABS
Cover........ABS
Sealant ........Epoxy
Safety valve ....Rubber
Terminal ........Copper/Pb
Separator ........Fiber glass
Electrolyte .......Sulfuric acid
