| Categories | Solar battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP120-12 |
| Battery brand | Matrix |
| case | abs |
| feature | high capacity |
| Type: | Lead Acid Battery |
| separater | agm |
| oem | avaliable |
| FOB port | shenzhen |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | |
| Update Time | 12-18-2015 |

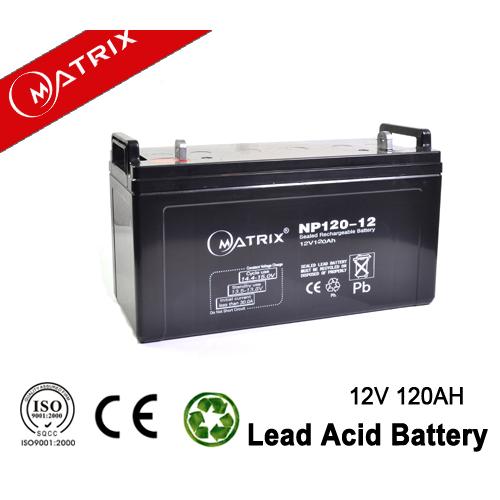

12v 120ah lead acid solar battery storage wholesale
Sepcification
| Nominal Voltage | 12V | |
| Rated capacity(20 hour rate) | 120AH | |
| Dimensions | Length | 407±1mm |
| Width | 173±1mm | |
| Height | 236±1mm | |
| Total Height | 220±1mm | |
| Weight Approx | 33Kg | |
Characteristic
| Capacity 25°C | 10 hour rate(10.00A, 10.80V) | 120.00AH | |
| 5 hour rate(16.00A, 10.50V) | 100.00AH | ||
| 1 hour rate(60.00A, 9.60V) | 80.00AH | ||
| Internal Resistance |
Full charged Battery at 25 °C (77°F) |
4.5mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle | Initial Charging Currentless than 30.00A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | PA100 | ||
Applications:
Main Features:
9.Wide operating temperature range
