| Categories | Solar battery |
|---|---|
| Brand | Matrix Lead acid battery |
| Model | NP200-12 |
| color | black |
| Battery Type | Lead acid |
| Manufacture type | Factory |
| Floating life | >12years |
| Battery brand | Matrix |
| Terminal | T12 |
| FOB port | Shenzhen or Guangzhou |
| Terms of Payment | L/C,Western Union,T/T |
| Download DOC | |
| Update Time | 12-19-2015 |

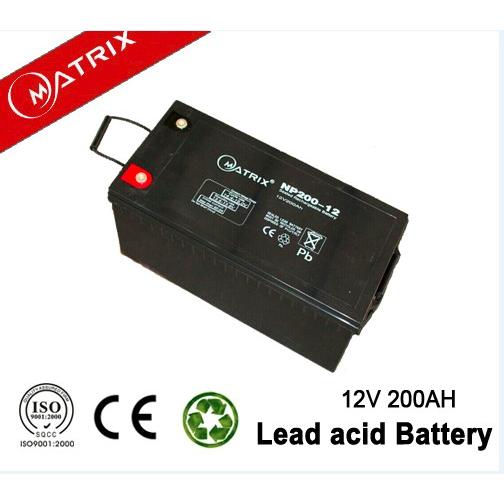

Low Self-Discharge 12v 200ah Solar Battery Storage Energy
Specification :
| Nominal Voltage | 12V | ||
| Rated capacity(20 hour rate) | 200AH | ||
| Dimensions | Length | 522±1mm | |
| Width | 235±1mm | ||
| Height | 218±1mm | ||
| Total Height | 220±1mm | ||
| Weight Approx |
58Kg |
||
Characteristic :
| Capacity 25°C | 10 hour rate(20.00A, 10.80V) | 200.00AH | |
| 5 hour rate(35.00A, 10.50V) | 175.00AH | ||
| 1 hour rate(124.00A, 9.60V) | 124.00AH | ||
| Internal Resistance |
Full charged Battery at 25 °C (77°F) |
3mΩ | |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| -15°C(5°F) | 65% | ||
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage | 91% | |
| Capacity after 6 month storage | 82% | ||
| Capacity after 12 month storage | 64% | ||
|
Charge (constant voltage) |
Cycle | Initial Charging Currentless than 60.00A Voltage14.40-15.00 V | |
| Float | Voltage 13.50-13.80V | ||
| Terminal | T12 | ||
Main Features:
1.Low self discharge: lower than 3% of rated capacity per month under normal operating
temperature
2.ABS case (can be made with flame retardant V0)
3.No memory effect after repetitious usage or discharges
4.Maintenance-free operation
5.Sealed construction and leak proof
6.Safety valve regulated system
7.Operating in any position
8.Deep discharge recovery
9.Wide operating temperature range
Application
(Cycle Use) :
Portable VTR/TV, tape recorders, radio, etc.
Power tools, lawn mowers, vacuum cleaners
Cameras and photographic equipment
Portable personal computers, word processors, portable terminals, etc.
Portable measuring equipment
Portable telephone sets
Various power toys and hobby equipment
Lighting equipment
· Data Centre (High Rate UPS)
· Telecommunication
· Banks & Financial Centre
· Hospital& Testing Laboratories
· Power Generation Plants
· Emergency Lighting
· Emergency Power Supply
· High Power Backup Supply
· LED Light
· VAN
· Wheel chairs
· Security system"Alarm system" "CCTV"
· "Video" Camera""Loudspeaker"
· Marine
· Mobility Scooter and Kids Car
Warnings:
- Matrix series batteries have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.
- Do not use a new battery with an old one.
- Do not use the battery in sealed container.
- Each battery should have detailed record including the ex-factory date, installing date and using record.
- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.
- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the battery clean.
- Avoid using any kind of organic solvents for cleaning the surface of the battery.
Other Hot model!!!
12V 7AH , 12V 12AH, 12V 17AH, 12V 24AH, 12V 38AH, 12V 65AH, 12V 100AH, 12V 120AH, 12V 150AH,12V 200AH
